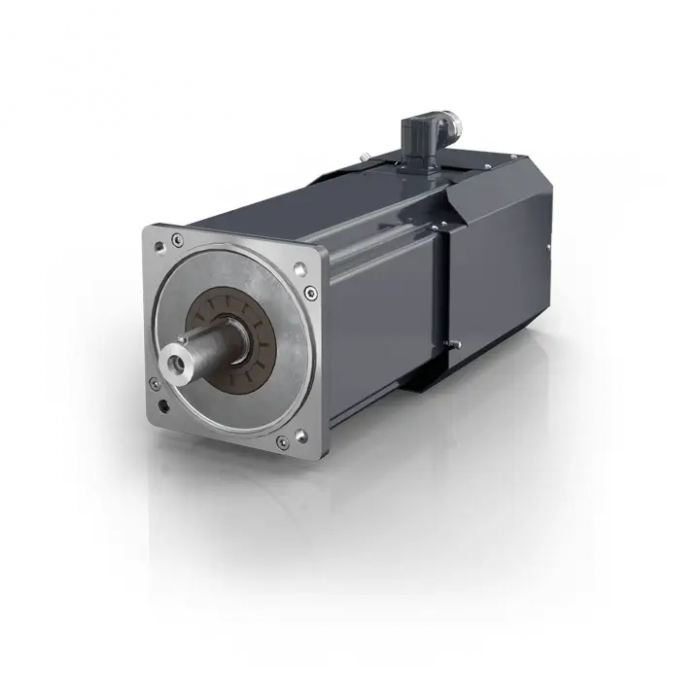

AM8074-0RJA Servomotor 129 Nm (M0), F7 (194 mm)
Motor type: permanent magnet-excited three-phase synchronous motor
Nominal voltage: 100…480 V AC
Standstill torque: 129 Nm
Rated torque: 93.3 Nm
Peak torque: 355 Nm
Rated speed: 1000 min-1
Rated power: 9.77 kW
Standstill current: 25.8 A
Peak current: 66.7 A
Torque constant: 4.99 Nm/A
Rotor moment of inertia: 180 kgcm²
Motor feedback: OCT, 18 bit, OCT, 24 bit, SIL 2-capable, resolver, Hiperface, single-turn absolute encoder, multi-turn absolute encoder
Cooling: external axial ventilation
Connection technology: M40 speedtec® plug
Ambient temperature (operation): +5…+40 °C
Approvals/markings: CE, cURus in preparation, EAC
The AM8074 standard servomotor is suitable for drive solutions with highest demands on dynamics and performance in the 400…480 V AC voltage range. The standstill torque of the motor depends on the winding and is in the range of 92.0…129 Nm. It is available with the OCT feedback system (absolute encoder). The standard servomotor with flange code F7 (194 mm) and motor length 4 has a shaft diameter b = 38 k6 and a free shaft end of d = 80 mm.
| SKU | AM8074-0RJA |
|---|
