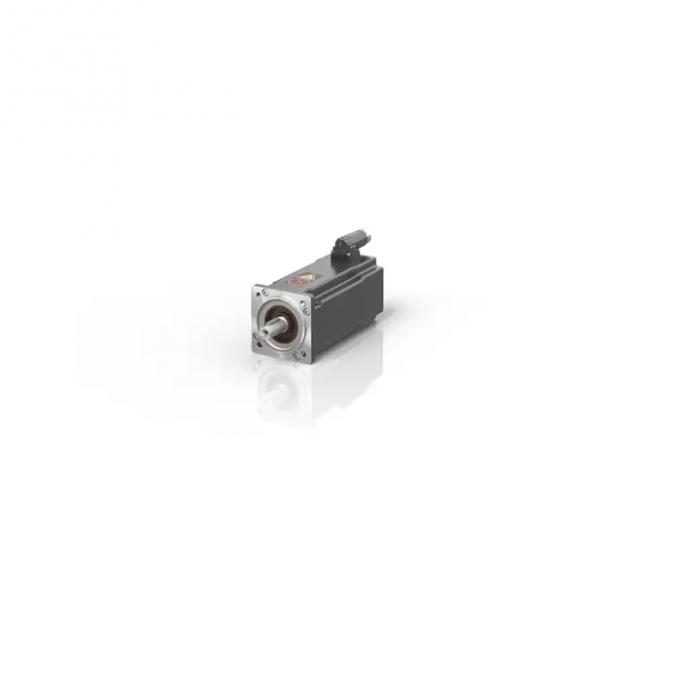

AM8533-2J20 Servomotor with increased moment of inertia 3.22 Nm (M0), F3 (72 mm)
Motor type: permanent magnet-excited three-phase synchronous motor
Nominal voltage: 100…480 V AC
Standstill torque: 3.22 Nm
Rated torque: 2.30 Nm
Peak torque: 17.22 Nm
Rated speed: 9000 min-1
Rated power: 2.17 kW
Standstill current: 6.80 A
Peak current: 39.8 A
Torque constant: 0.47 Nm/A
Rotor moment of inertia: 2.44 kgcm²
Motor feedback: OCT, 18 bit, OCT, 24 bit, SIL 2-capable, resolver, single-turn absolute encoder, multi-turn absolute encoder
Cooling: convection
Connection technology: itec® plug
Ambient temperature (operation): +5…+40 °C
Approvals/markings: CE, cURus, EAC
The AM8533 high-inertia servomotor is suitable for drive solutions with increased moment of inertia to ensure synchronism and optimal ratio of load/motor inertia in the 100…480 V AC voltage range. The standstill torque of the motor depends on the winding and is in the range of 3,20…3,22 Nm. It is available with the OCT feedback system (absolute encoder). The high-inertia servomotor with flange code F3 (72 mm) and motor length 3 has a shaft diameter b = 14 k6 and a free shaft end of d = 30 mm.
| SKU | AM8533-2J20 |
|---|
