AP AKZ4

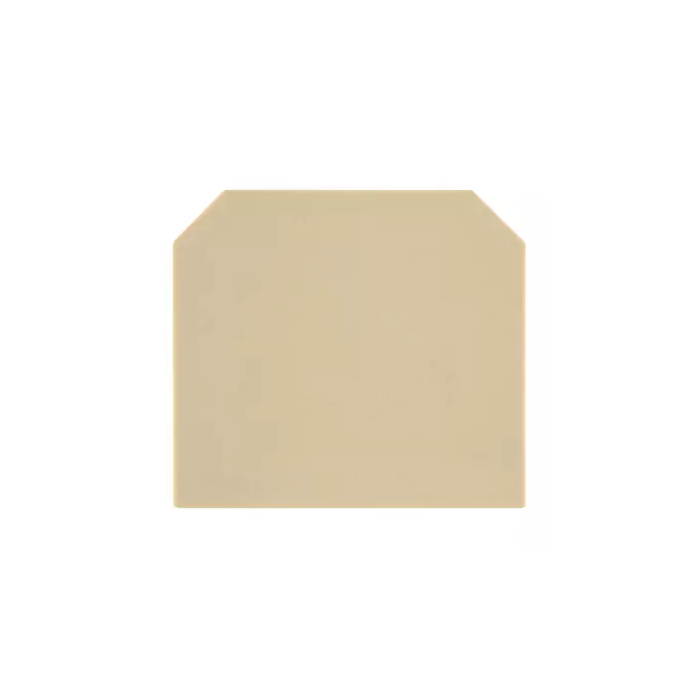

End Plate (Terminals):
- End plates are installed on the open side of the last modular terminal before the end bracket.
- Using an end plate ensures the modular terminal functions properly and meets the stated rated voltage.
- It provides protection against contact with live parts and renders the final terminal finger-proof.
Specifications weights and dimensions:
- Depth: 24.5 mm.
- Height: 27 mm.
- Width: 1.5 mm.
- Net weight: 1.15 g.
Temperatures:
- Storage temperature: -25°C - 55°C.
- Continuous operating temp., min: -60 °C.
- Continuous operating temp., max: 130 °C.
Material data:
- Material: Wemid.
- Colour: dark beige.
- UL 94 flammability rating: V-0.
- System specifications:
- Version: End plate.
Additional technical data:
- Installation advice: Mount directly.
- Snap-on: Yes.
General:
- Installation advice: Mount directly.
| Brand | Weidmuller |
|---|
