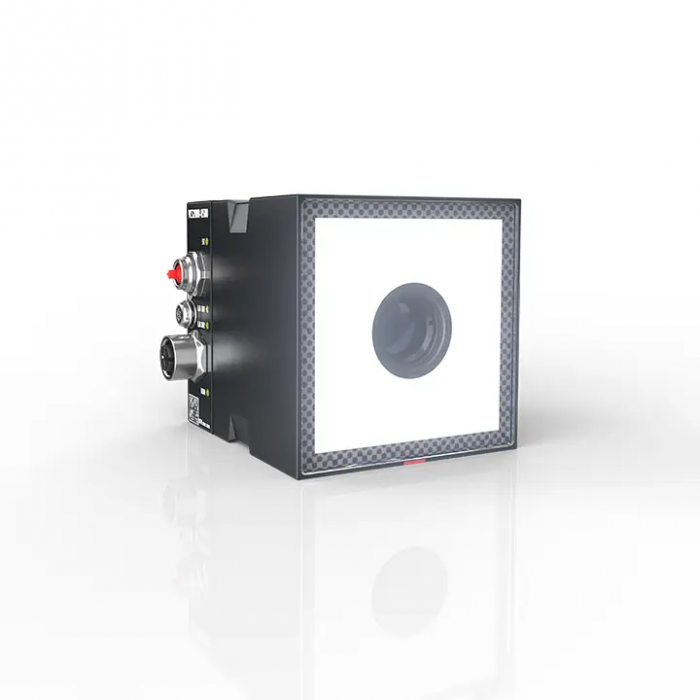

Area scan camera unit VUI2000-0312

Sensor: Sony IMX265, CMOS, global shutter Sensor size: 1/1.8" (8.8 mm) Spectral sensitivity: monochrome Number of pixels: 3.1 MP Pixel size: 3.45 µm Focal length: 12 mm Image resolution (H x V): 2048 x 1536 Max. frame rate: 55 fps Bit depth: 12 Pixel formats: Mono8, Mono10, Mono10p, Mono12, Mono12p Image output: GigE Vision 2.1 supported via Ethernet Synchronization: mode 1: EtherCAT P mode 2: Digital input Power supply: mode 1: EtherCAT P mode 2: 24 V DC (-15 %/+20 %) Max. power consumption: 14 W Connection method: M8, socket, 4-pin, P-coded M12, socket, 8-pin, X-coded Aperture: 4.5 Working distance lower range: 100 Working distance upper range: infinity Focus adjustment: electronic Front glass: thermally hardened, double-sided anti-reflective coating Light colour: orange: 612 nm, green: 545 nm, blue: 452 nm, infrared: 853 nm, white: 6560 K, CRI >80 Peak performance: 430 W (electrical, VIS LEDs, max. 500 µs) Beam angle: 40° Light distribution: narrow beam Dimensions (W x H x D): 72 mm x 72 mm x 77 mm Weight: 650 g Protection rating: IP65/67 Operating temperature: 0…+60 °C Approvals/markings: CE, UL, UKCA, EAC, RoHS, WEEE
