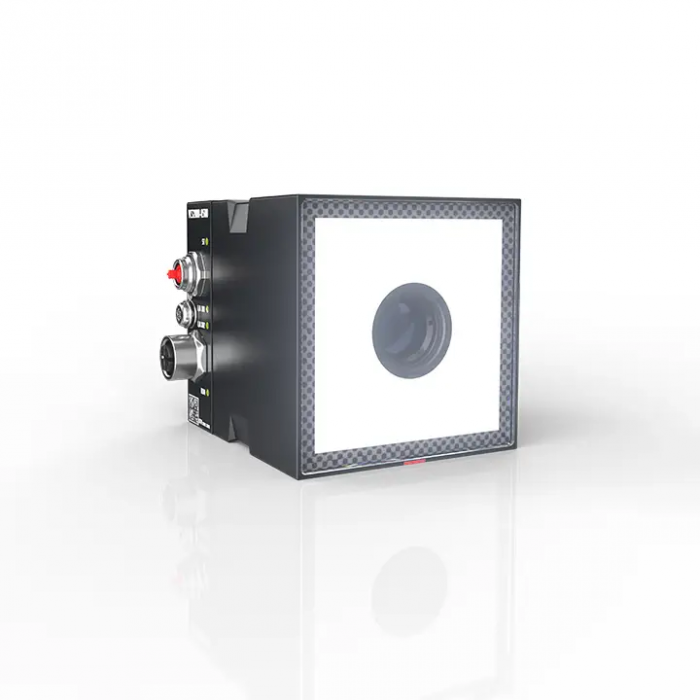

Area scan camera unit VUI2001-0512

Sensor Sony IMX264, CMOS, global shutter Sensor size 2/3" (11 mm) Spectral sensitivity colour Number of pixels 5.0 MP Pixel size 3.45 µm Focal length 12 mm Image resolution (H x V) 2464 x 2048 Max. frame rate 35 fps Bit depth 12 Pixel formats Mono8, Mono10, Mono10p, Mono12, Mono12p, BayerGR Image output GigE Vision 2.1 supported via Ethernet Synchronization mode 1: EtherCAT P mode 2: Digital input Power supply mode 1: EtherCAT P mode 2: 24 V DC (-15 %/+20 %) Max. power consumption 14 W Connection method M8, socket, 4-pin, P-coded M12, socket, 8-pin, X-coded Aperture 4.5 Working distance lower range 100 Working distance upper range infinity Focus adjustment electronic Front glass thermally hardened, double-sided anti-reflective coating Light colour orange: 612 nm, green: 545 nm, blue: 452 nm, infrared: 853 nm, white: 6560 K, CRI >80 Peak performance 430 W (electrical, VIS LEDs, max. 500 µs) Beam angle 40° Light distribution narrow beam Dimensions (W x H x D) 72 mm x 72 mm x 77 mm Weight 650 g Protection rating IP65/67 Operating temperature 0…+60 °C Approvals/markings CE, UL, UKCA, EAC, RoHS, WEEE
