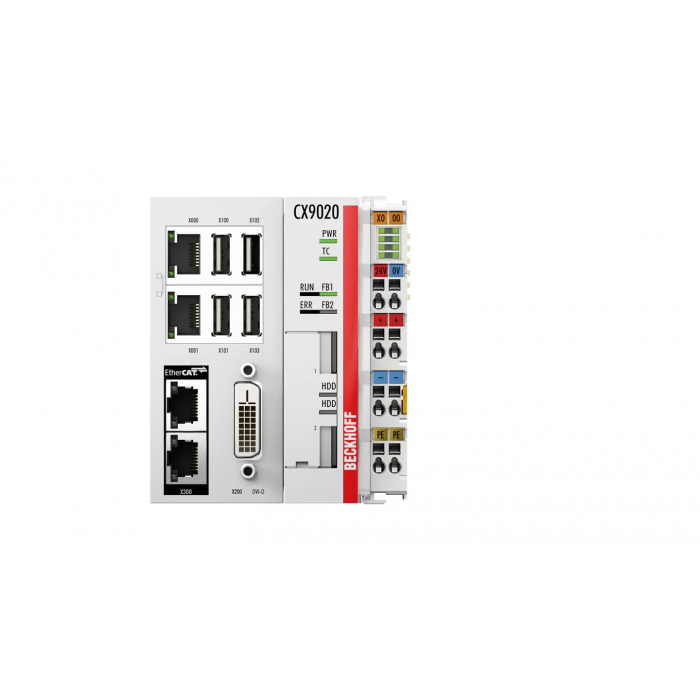

ARM Cortex™-A8, 1 GHz CX9020-0100
The CX9020 is a compact, DIN rail-mountable Ethernet control system with 1 GHz ARM Cortex™-A8 CPU. The connection for the Beckhoff I/O systems is directly integrated into the CPU module. The unit offers automatic bus system identification (E-bus or K-bus) and independently switches in the corresponding mode. The CX9020 comprises the CPU with two microSD card slots, the internal RAM and 128 kB NOVRAM as non-volatile memory. The basic configuration also includes two switched Ethernet RJ45 interfaces, four USB 2.0 interfaces and a DVI-D interface. The RJ45 interfaces are connected to an internal switch and offer a simple option for creating a line topology without the need for additional Ethernet switches. The operating system is Windows Embedded Compact 7. TwinCAT automation software transforms a CX9020 system into a powerful PLC and motion control system that can be operated with or without visualization. Optionally, the unit can be ordered with a fieldbus, serial or audio interface.
The extended operating temperature range between -25 °C and +60 °C enables application in climatically demanding situations.
Processor: ARM Cortex™-A8, 1 GHz
Number of cores: 1
Flash memory: 2 x slot for microSD card, 512 MB included (expandable)
Main memory: 1 GB DDR3 RAM (not expandable)
Persistent memory: 128 kB NOVRAM integrated
Interfaces: 2 x RJ45 10/100 Mbit/s (internal switch), 1 x DVI-D, 4 x USB 2.0, 1 x optional interface
Diagnostics LED: 1 x power, 1 x TC status, 2 x flash access, 2 x bus status
Clock: internal battery-backed clock for time and date (battery exchangeable)
Operating system: Windows Embedded Compact 7, English
Control software: TwinCAT 2 runtime
TwinCAT 3 runtime (XAR)
I/O connection: E-bus or K-bus, automatic recognition
Power supply: 24 V DC (-15 %/+20 %)
Current supply E-bus/K-bus: 2 A
Max. power consumption: 5 W
Max. power consumption (with loading UPS): 9 W
Dimensions (W x H x D): 84 mm x 100 mm x 91 mm
Weight: approx. 590 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protection rating: IP20
Approvals/markings: CE, UL, DNV GL, with CX2900-0107 ordering option: ATEX, IECEx, cFMus
Ex marking: ATEX:
II 3 G Ex nA IIC T4 Gc
II 3 D Ex tc IIIC T135 °C Dc
IECEx:
Ex nA IIC T4 Gc
Ex tc IIIC T135 °C Dc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc
TwinCAT 3 platform level: Economy Plus (30); please see here for an overview of all the TwinCAT 3 platform level
