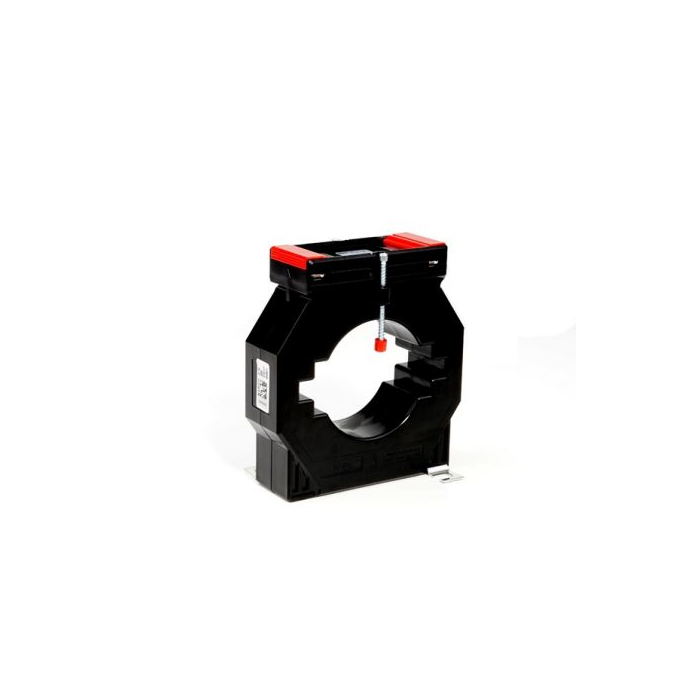

ASK 101.4 1600/5A CT 30VA
Transformers for current Broad parameters:
- E is the isolation class.
- Up to 0.72 kV is the maximum operating voltage.
- Frequency nominal: 50 Hz (others upon request).
- Thermal short-time current nominal: Ith = 60 x In.
- FS 5, up to 1500 A nominal current, is the over-current limiting factor.
- MBS AG current transformers completely adhere to IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Specifications:
- Standard current transformers (5A secondary - class 1),
- ASK 101.4 current transformers,
- MODEL ASK 101.4,
- RATIO 1600/5A,
- ROUND CONDUCTOR (⌀) 70 mm,
- PRIMARY BAR CONDUCTOR 100 X 10 / 80 X 30 mm,
- DESCRIPTION Standard current transformer,
- CLASS 1,
- VA 30,
- DIMENSIONS (MM) (H) 144 x (W) 130 x (D) 40
| Brand | MBS |
|---|
