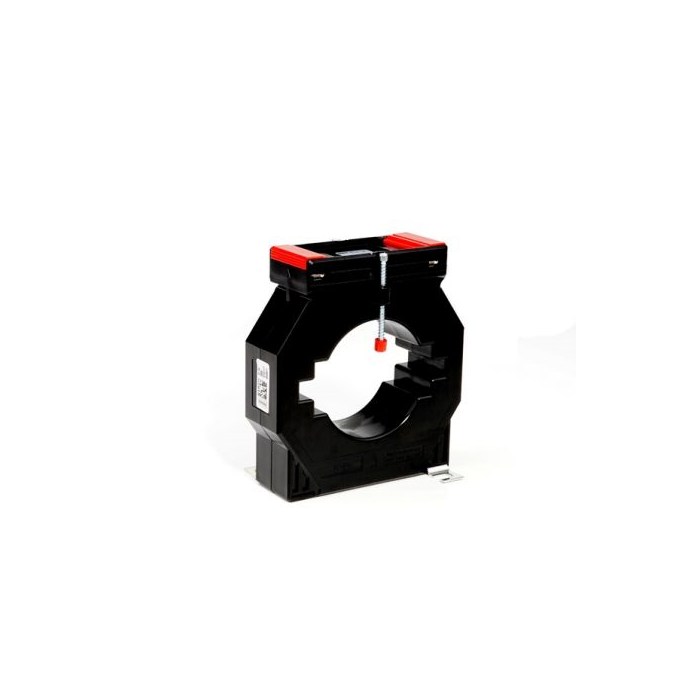

ASK 101.4 2000/5A CT 30VA

ZAR 957.30
Out of stock
SKU
22070

Transformers of current general parameters:

  • Category of isolation: E.
  • Up to a maximum of 0.72 kV, the working voltage.
  • 50Hz as the nominal frequency (others upon request).
  • For thermal short-time current, the nominal value is Ith = 60 x In.
  • Up to 1500 A nominal current, the over-current limiting factor (FS 5) is in place.
  • The MBS AG current transformers completely comply with the following standards: VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.

Specifications:

  • Standard current transformers (5A secondary - class 1),
  • ASK 101.4 current transformers,
  • MODEL ASK 101.4,
  • RATIO 2000/5A,
  • ROUND CONDUCTOR (⌀) 70 mm,
  • PRIMARY BAR CONDUCTOR 100 X 10 / 80 X 30 mm,
  • DESCRIPTION Standard current transformer,
  • CLASS 1,
  • VA 30,
  • DIMENSIONS (MM) (H) 144 x (W) 130 x (D) 40
More Information
Brand MBS
