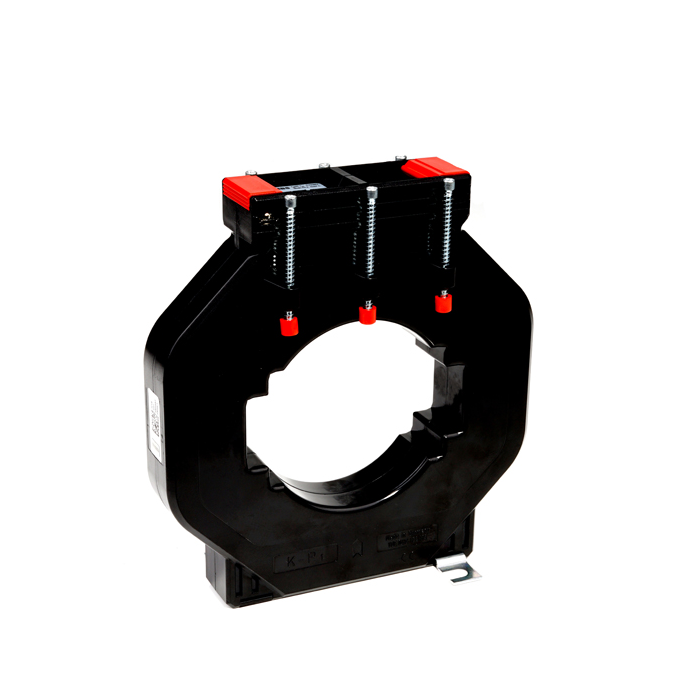

ASK 103.3 2000/5A 30VA CT cl 1
Transformers of current overall characteristics:
- E is the isolation class.
- Maximum working voltage: 0.72 kV or less.
- 50 Hz is the nominal frequency: alternative frequencies available upon request.
- Ith = 60 x In represents the nominal thermal short-time current.
- FS 5 is the over-current limiting factor up to 1500 A nominal current.
- MBS AG current transformers completely comply with IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Specifications:
- Standard current transformers (5A secondary - class 1),
- ASK 103.3 current transformers,
- MODEL ASK 103.3,
- RATIO 2000/5A,
- ROUND CONDUCTOR (⌀) 85 mm,
- PRIMARY BAR CONDUCTOR 100 X 30 / 80 X 50 mm,
- DESCRIPTION Standard current transformer,
- CLASS 1,
- VA 30,
- DIMENSIONS (MM) (H) 188 x (W) 172 x (D) 52
| Brand | MBS |
|---|
