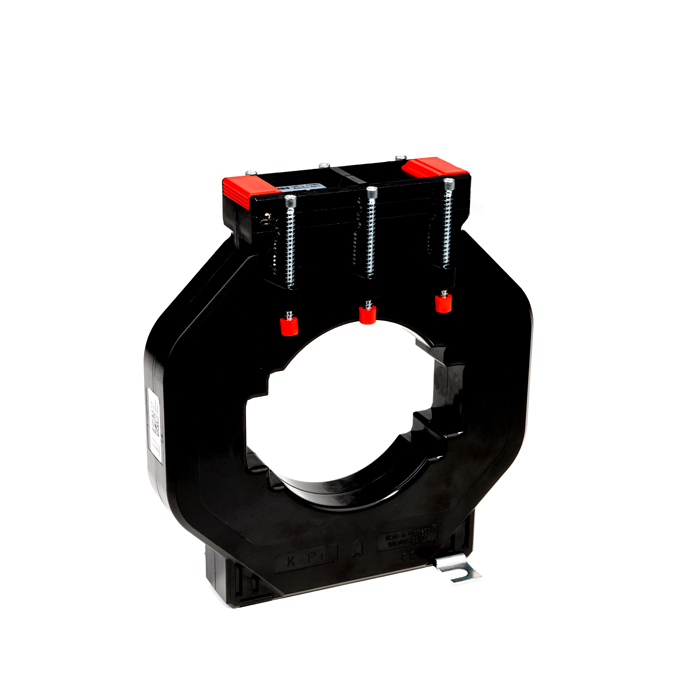

ASK 103.3 3000/5A CT cl 0.5
Transformers of current general parameters:
- Category of isolation: E.
- Up to a maximum of 0.72 kV, the working voltage.
- 50Hz as the nominal frequency (others upon request).
- For thermal short-time current, the nominal value is Ith = 60 x In.
- Up to 1500 A nominal current, the over-current limiting factor (FS 5) is in place.
- The MBS AG current transformers completely comply with the following standards: VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
Specifications:
- Class 0.5 current transformers 5A secondary (class 0.2 available on request),
- ASK 103.3 current transformers,
- MODEL ASK 103.3,
- RATIO 3000/5A,
- ROUND CONDUCTOR (⌀) 85 mm,
- PRIMARY BAR CONDUCTOR 100 X 30 / 80 X 50 mm,
- DESCRIPTION Standard current transformer,
- CLASS 0.5,
- VA 30,
- DIMENSIONS (MM) (H) 188 x (W) 172 x (D) 35
| Brand | MBS |
|---|
