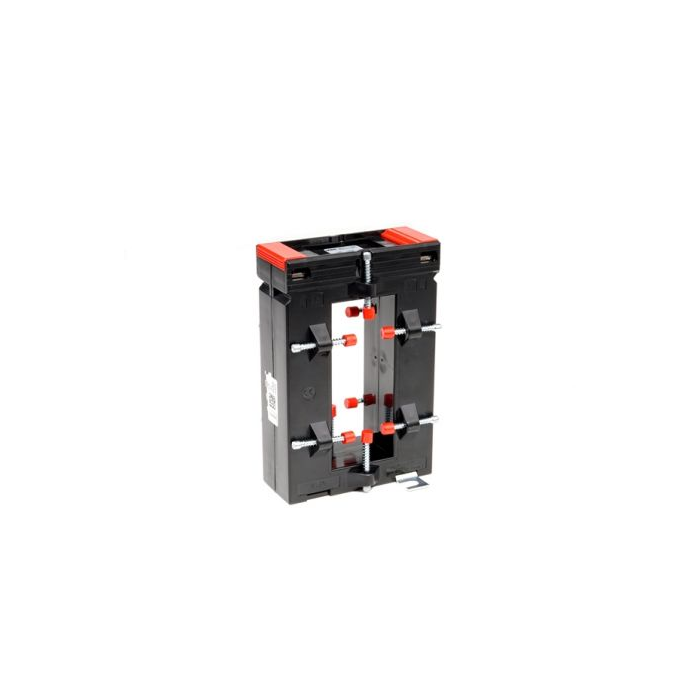

ASK 103.41 600/5A 5VA CT cl 1
Overall characteristics:
- E is the isolation class.
- Operating voltage maximum: approximately 0.72 kV.
- 50 Hz is the nominal frequency: alternative frequencies available upon request.
- Ith = 60 x In represents the nominal thermal short-time current.
- FS 5 is the over-current limiting factor up to 1500 A nominal current.
- MBS AG current transformers completely comply with IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Specifications:
- Rectangular shaped current transformers (5A secondary - class 1),
- ASK 103.41 current transformers,
- MODEL ASK 103.41,
- RATIO 600/5A,
- ROUND CONDUCTOR (⌀) 40 mm,
- PRIMARY BAR CONDUCTOR 103 x 41 mm,
- DESCRIPTION Rectangular shaped current transformer,
- CLASS 1,
- VA 5,
- DIMENSIONS (MM) (H) 150 x (W) 99 x (D) 40
| Brand | MBS |
|---|
