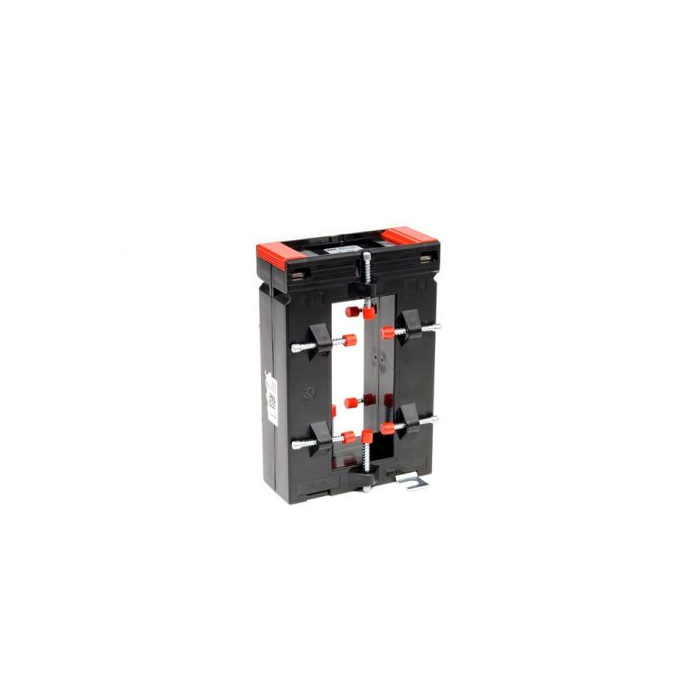

ASK 103.41 800/5A 5VA CT cl 1
General details:
- Class of isolation: E.
- Up to 0.72 kV is the maximum operating voltage.
- 50 Hz is the nominal frequency (others upon request).
- Ith = 60 x In is the nominal thermal short-time current.
- FS 5 is the over-current limiting factor up to a nominal current of 1500 A.
- MBS AG current transformers completely comply with VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
Specifications:
- Rectangular shaped current transformers (5A secondary - class 1),
- ASK 103.41 current transformers,
- MODEL ASK 103.41,
- RATIO 800/5A,
- ROUND CONDUCTOR (⌀) 40 mm,
- PRIMARY BAR CONDUCTOR 103 x 41 mm,
- DESCRIPTION Rectangular shaped current transformer,
- CLASS 1,
- VA 10,
- DIMENSIONS (MM) (H) 150 x (W) 99 x (D) 40
| Brand | MBS |
|---|
