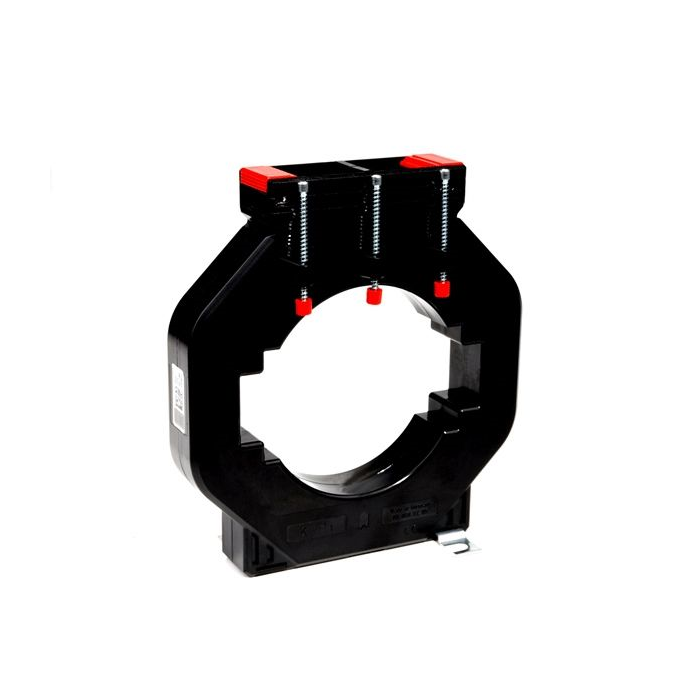

ASK 123.3 1250/5A CURRENT TRANSFORMER CLASS 0.2S

ZAR 5,855.93
Out of stock
SKU
V56-2704F

ASK 123.3 current transformers:

  • Nominal frequency: 50Hz (others upon request);
  • Maximum operating voltage: Um ≤ 0.72 kV
  • Isolation class: E
  • Thermal short-time current nominal: Ith = 60 x In
  • FS 5 is the over-current limiting factor up to 1500 A nominal current.
  • MBS AG current transformers completely abide by: IEC 61869/1+2 - DIN 42600 - VBG 4 - DIN VDE 0414/1
  • Class 0.2 current transformers with a 5A secondary

Specifications:

  • MODEL: ASK 123.3
  • RATIO: 1250/5A
  • ROUND CONDUCTOR (⌀): 100 mm
  • PRIMARY BAR CONDUCTOR: 120 x 30 / 100 x 50
  • DESCRIPTION: Standard current transformer
  • CLASS: 0.2s
  • VA: 5
  • DIMENSIONS (MM): (H) 184.8 x (W) 172 x (D) 52
  • Current transformers
More Information
Brand MBS
