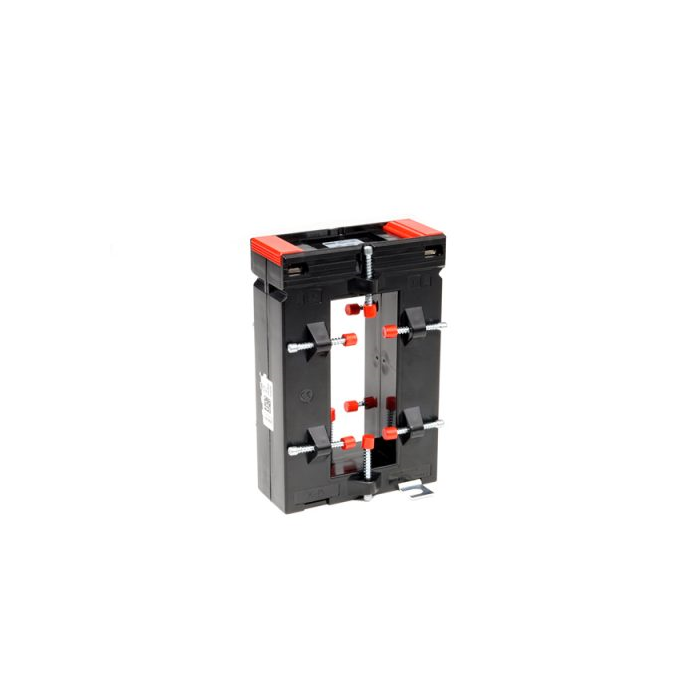

ASK 128.4 2000/5A 5VA CT cl 1
General details:
- Class of isolation: E.
- Up to 0.72 kV is the maximum operating voltage.
- 50 Hz is the nominal frequency (others upon request).
- Ith = 60 x In is the nominal thermal short-time current.
- FS 5 is the over-current limiting factor up to a nominal current of 1500 A.
- MBS AG current transformers completely comply with VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
Specifications:
- Rectangular shaped current transformers (5A secondary - class 1),
- ASK 128.4 current transformers,
- MODEL ASK 128.4,
- RATIO 2000/5A,
- ROUND CONDUCTOR (⌀) 38 mm,
- PRIMARY BAR CONDUCTOR 128 x 38 mm,
- DESCRIPTION Standard current transformer,
- CLASS 1,
- VA 30,
- DIMENSIONS (MM) (H) 178 x (W) 100 x (D) 40
| Brand | MBS |
|---|
