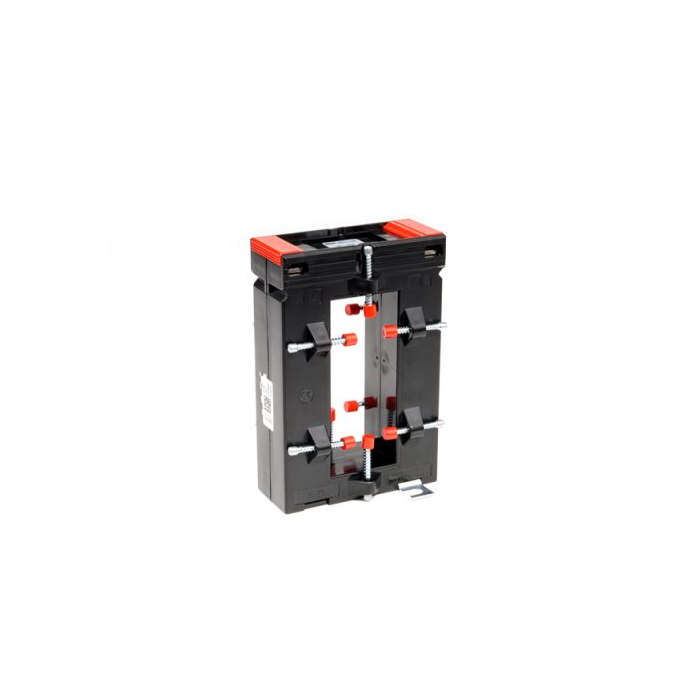

ASK 128.4 2500/5A 5VA CT cl 1
Description:
- E is the isolation class.
- Operating voltage maximum: 0.72 kV.
- Frequency nominal: 50 Hz (others upon request).
- Thermal short-time current nominal: Ith = 60 x In.
- FS 5, up to 1500 A nominal current, is the over-current limiting factor.
- MBS AG current transformers completely adhere to IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Specifications:
- Rectangular shaped current transformers (5A secondary - class 1).
- ASK 128.4 current transformers.
- MODEL ASK 128.4.
- RATIO 2500/5A.
- ROUND CONDUCTOR (⌀) 38 mm.
- PRIMARY BAR CONDUCTOR 128 x 38 mm.
- DESCRIPTION Standard current transformer.
- CLASS 1.
- VA 30.
- DIMENSIONS (MM) (H) 178 x (W) 100 x (D) 40.
| SKU | 94062 |
|---|---|
| Brand | MBS |
