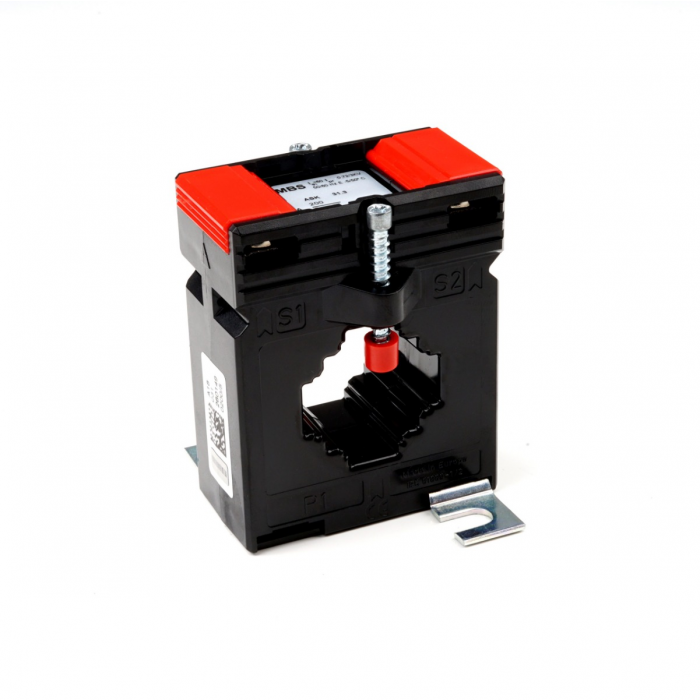

ASK 31.3 60/5A CT cl 1
Transformers for current General details:
- Class of isolation: E
- Nominal frequency: 50 Hz (others upon request); • Maximum operational voltage: Um ≤ 0.72 kV
- Ith = 60 x In is the nominal thermal short-time current.
- Over-current limiting factor: FS 5 for nominal currents up to 1500 A
- MBS AG current transformers completely abide by: VBG 4 - IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1
Specifications:
- Busbar mounted current transformers (5A secondary - class 1)
- MODEL: ASK 31.3
- RATIO: 60/5A
- ROUND CONDUCTOR (⌀): 26 mm
- PRIMARY BAR CONDUCTOR: 30 X 10 / 20 X 20 mm
- DESCRIPTION: Standard current transformer
- CLASS: 1
- VA: 1
- DIMENSIONS (MM): (H) 76 x (W) 61 x (D) 48
| Brand | MBS |
|---|
