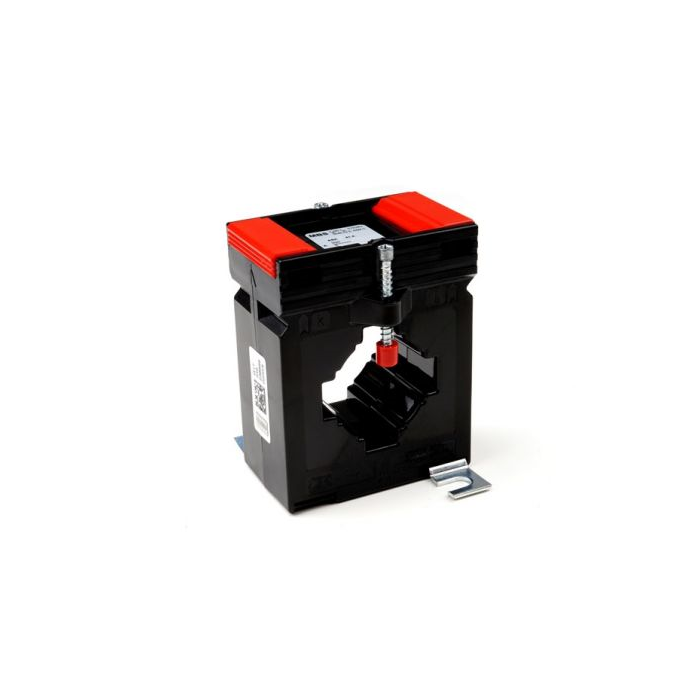

ASK 41.4 100/1A CURRENT TRANSFORMER CLASS 1
Current transformers ASK 41.4:
- Class of isolation: E
- Nominal frequency: 50 Hz (others upon request)
- Maximum operational voltage: Um ≤ 0.72 kV
- Ith = 60 x In is the nominal thermal short-time current.
- Over-current limiting factor: FS 5 for nominal currents up to 1500 A
- MBS AG current transformers completely comply with IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1 - VBG 4.
- Transformers with standard current (1A secondary - class 1)
Specifications:
- MODEL: ASK 41.4
- RATIO: 100/1A
- ROUND CONDUCTOR (⌀): 32 mm
- PRIMARY BAR CONDUCTOR: 40 X 10 / 30 X 10 mm
- DESCRIPTION: Standard current transformer
- CLASS: 1
- VA: 2.5
- DIMENSIONS (MM): (H) 86 x (W) 71 x (D) 40
- Current transformers
| Brand | MBS |
|---|
