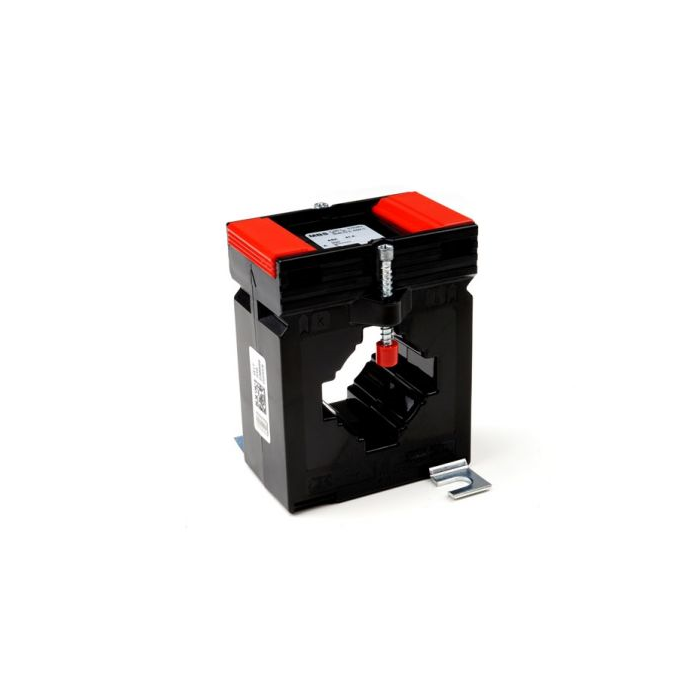

ASK 41.4 300/5A CURRENT TRANSFORMER CLASS 0.5
Current transformers ASK 41.4:
- Model number: ASK 41.4; Ratio: 300/5 A.
- PRIMARY BAR CONDUCTOR: 40 X 10 / 30 X 10 mm
- ROUND CONDUCTOR (⌀): 32 mm
- DESCRIPTION: typical current transformer
- Class: 0.5
- Value Added: 10
- DIMENSIONS (MM): 40 x 71 x 86 (H)
- Transformers for current
General details:
- Nominal frequency: 50Hz (others upon request)
- Maximum operating voltage: Um ≤ 0.72 kV
- Isolation class: E
- Ith = 60 x In is the nominal thermal short-time current.
- Over-current limiting factor: FS 5 for nominal currents up to 1500 A
- MBS AG current transformers completely abide by: VBG 4 - IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1
- 5A secondary class 0.5 current transformers (class 0.2 available upon request)
| Brand | MBS |
|---|
