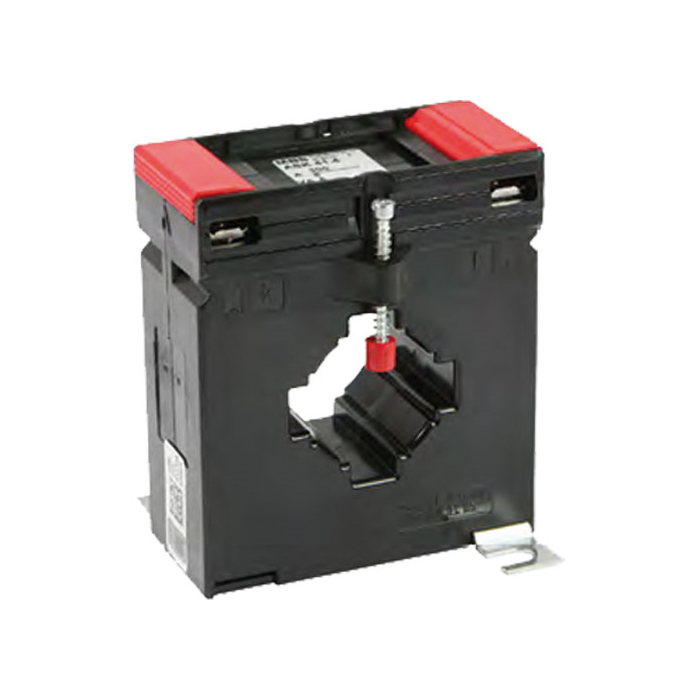

ASK 41.4 300/5A CURRENT TRANSFORMER CLASS 1
ASK 41.4 current transformers:
- MODEL: ASK 41.4
- RATIO: 300/5A
- ROUND CONDUCTOR (⌀): 32 mm
- PRIMARY BAR CONDUCTOR: 40 X 10 / 30 X 10 mm
- DESCRIPTION: Standard current transformer
- CLASS: 1
- VA: 10
- DIMENSIONS (MM): (H) 86 x (W) 71 x (D) 58
- Current transformers
General specifications:
- Isolation class: E
- Maximum operating voltage: Um ≤ 0.72 kV
- Nominal frequency: 50Hz (others on request)
- Nominal thermal short-time current: Ith = 60 x In
- Over-current limiting factor: FS 5 up to 1500 A nominal current
- MBS AG current transformers conform fully to: DIN VDE 0414/1 - DIN 42600 - IEC 61869/1+2 - VBG 4
- Busbar mounted current transformers (5A secondary - class 1)
| Brand | MBS |
|---|
