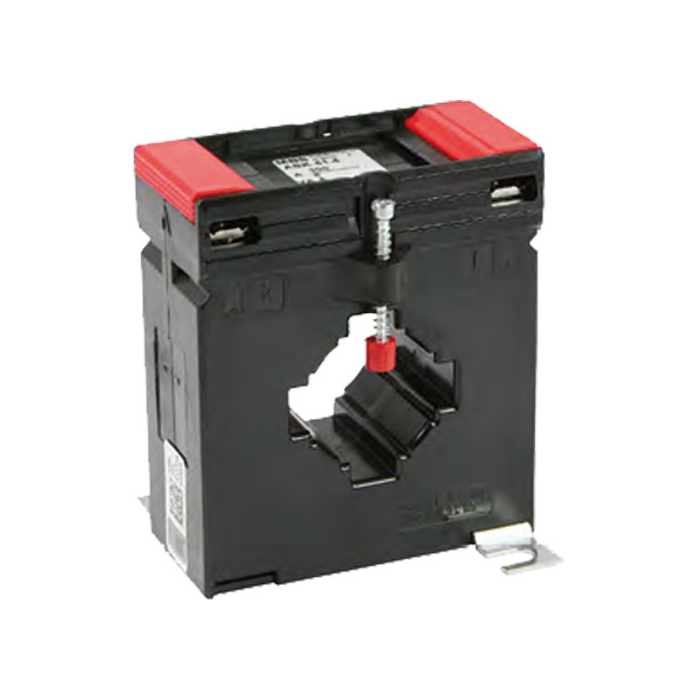

ASK 41.4 400/5A CURRENT TRANSFORMER CLASS 1 15VA
Current transformers ASK 41.4:
- ASK 41.4 MODEL
- ROUND RATIO: 400/5A FIRST BAR CONDUCTOR: 40 X 10 / 30 X 10 mm
- CONDUCTOR (⌀): 32 mm
- DESCRIPTION: Transformer for standard current
- CLASS: 1 VA: 15
- DIMENSIONS (MM): 71 x (D) and 86 x (H) 58 transformers for current
General details:
- Nominal frequency: 50Hz (others upon request)
- Maximum operating voltage: Um ≤ 0.72 kV
- Isolation class: E
- Ith = 60 x In is the nominal thermal short-time current.
- Over-current limiting factor: FS 5 for nominal currents up to 1500 A
- MBS AG current transformers completely comply with IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1 - VBG 4.
- Current transformers installed on busbars (5A secondary - class 1)
| Brand | MBS |
|---|
