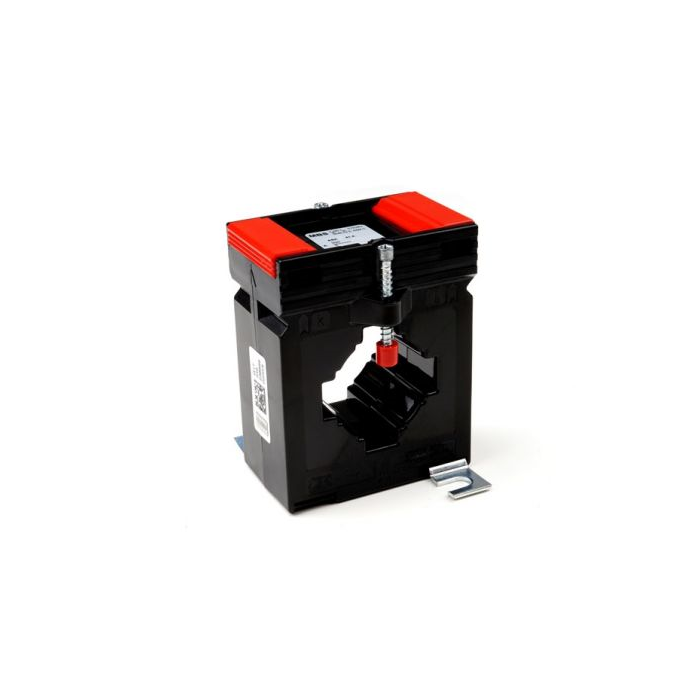

Current transformers for ASK 41.4:

• Maximum operational voltage: Um < 0.72 kV
• Nominal frequency: 50 Hz (others upon request)
• Isolation class: E
• Thermal short-time current nominal: Ith = 60 x In.
• FS 5 is the over-current limiting factor up to 1500 A nominal current.
• MBS AG current transformers completely comply with IEC 61869/1+2, DIN 42600, DIN VDE 0414/1, and VBG 4.
• 1A secondary current transformers (class 1)
