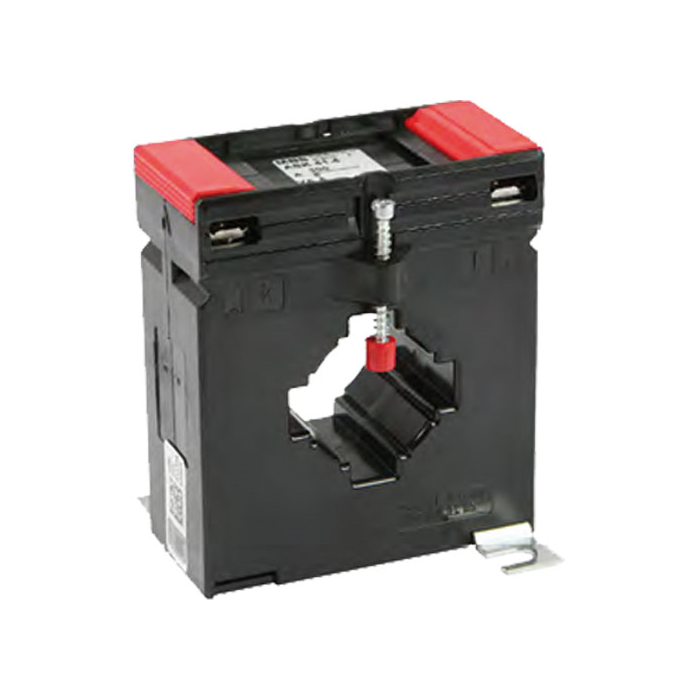

ASK 41.4 500/5A CURRENT TRANSFORMER CLASS 1

ZAR 328.80
Out of stock
SKU
13066

Current transformers ASK 41.4:

  • Model number: ASK 41.4
  • Ratio: 500/5A
  • PRIMARY BAR CONDUCTOR: 40 X 10 / 30 X 10 mm
  • ROUND CONDUCTOR (⌀): 32 mm
  • DESCRIPTION: typical current transformer
  • DIMENSIONS (MM): (H) 86 x (W) 71 x (D) 58
  • CLASS: 1
  • VA: 15.
  • Transformers for current

General details:

  • Nominal frequency: 50Hz (others upon request)
  • Maximum operating voltage: Um ≤ 0.72 kV
  • Isolation class: E
  • Ith = 60 x In is the nominal thermal short-time current.
  • Over-current limiting factor: FS 5 for nominal currents up to 1500 A
  • MBS AG current transformers completely comply with IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1 - VBG 4.
  • Current transformers installed on busbars (5A secondary, class 1)
More Information
Brand MBS
