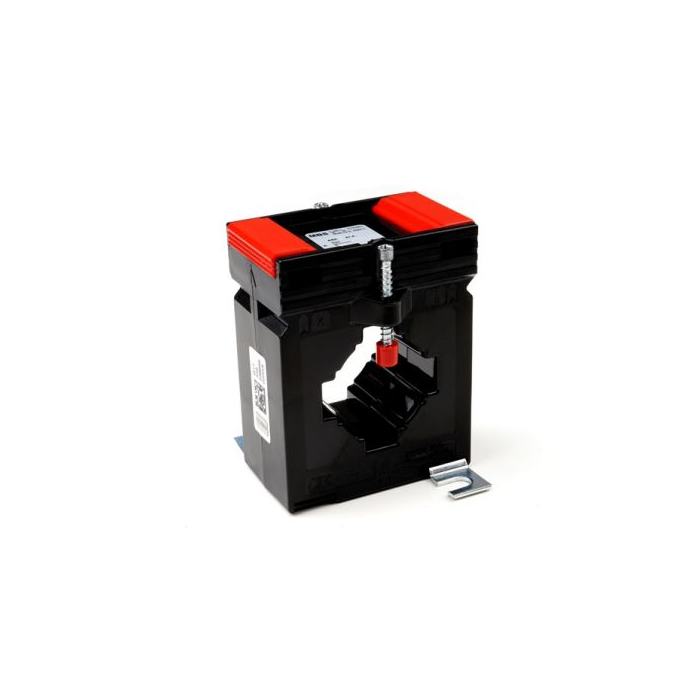

ASK 41.4 600/5A CURRENT TRANSFORMER CLASS 0.2S

ZAR 3,679.30
Out of stock
SKU
V24-2204F

Current transformers ASK 41.4:

  • Nominal frequency: 50 Hz (others upon request)
  • Maximum operating voltage: Um ≤ 0.72 kV
  • Isolation class: E
  • Ith = 60 x In is the nominal thermal short-time current.
  • Over-current limiting factor: FS 5 for nominal currents up to 1500 A
  • MBS AG current transformers completely abide by: VBG 4 - IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1
  • 5A secondary current converters for class 0.2

Specifications:

  • MODEL: ASK 41.4
  • RATIO: 600/5A
  • ROUND CONDUCTOR (⌀): 32 mm
  • PRIMARY BAR CONDUCTOR: 40 x 10 / 30 x 15
  • DESCRIPTION: Standard current transformer
  • CLASS: 0.2s
  • VA: 5
  • DIMENSIONS (MM): (H) 85 x (W) 71 x (D) 58
  • Current transformers
More Information
Brand MBS
