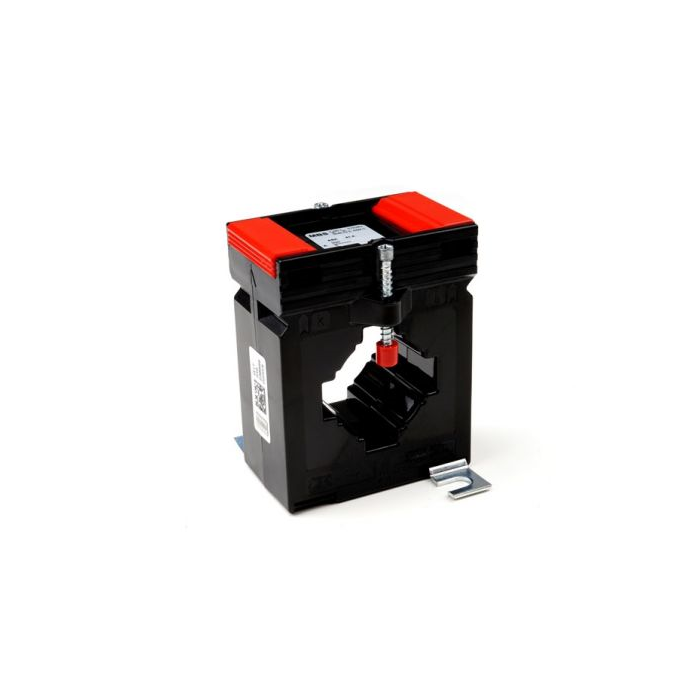

ASK 41.4 750/1A CURRENT TRANSFORMER CLASS 1

ZAR 662.80
Out of stock
SKU
13273

Transformers for current ASK 41.4:

  • Class E isolation; Um < 0.72 kV maximum operating voltage; 50 Hz nominal frequency (others upon request)
  • Thermal short-time current nominal: Ith = 60 x In
  • FS 5 serves as the over-current limiting factor up to 1500 A nominal current.
  • MBS AG current transformers completely comply with both VBG 4 and IEC 61869/1+2 as well as DIN 42600 and VDE 0414/1.
  • 1A secondary - class 1 standard current transformers

Specifications:

  • MODEL: ASK 41.4
  • RATIO: 750/1A
  • ROUND CONDUCTOR (⌀): 32 mm
  • PRIMARY BAR CONDUCTOR: 40 X 10 / 30 X 10 mm
  • DESCRIPTION: Standard current transformer
  • CLASS: 1
  • VA: 15
  • DIMENSIONS (MM): (H) 86 x (W) 71 x (D) 58
  • Current transformers
More Information
Brand MBS
