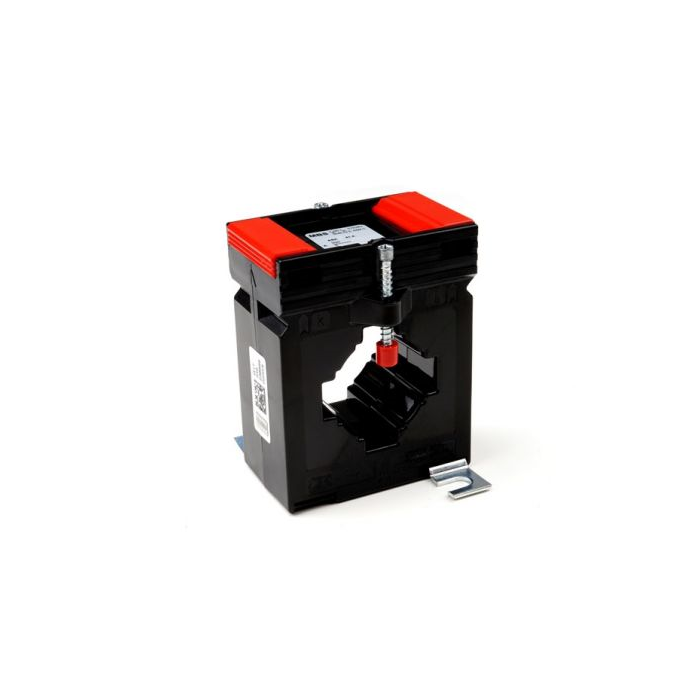

ASK 41.4 800/5A CURRENT TRANSFORMER CLASS 0.5
MODEL ASK 41.4:
- Ratio: 800/5A
- Round Conductor (⌀): 32 mm
- Primary bar conductor: 40 X 10 / 30 X 10 mm
- Description: Standard current transformer
- Class: 0.5
- VA: 10
- Dimensions (mm): (H) 86 x (W) 71 x (D) 40
General specifications:
- Isolation class: E
- Maximum operating voltage: Um ≤ 0.72 kV
- Nominal frequency: 50Hz (others on request)
- Nominal thermal short-time current: Ith = 60 x In
- Over-current limiting factor: FS 5 up to 1500 A nominal current
- MBS AG current transformers conform fully to: DIN VDE 0414/1 - DIN 42600 - IEC 61869/1+2 - VBG 4
- Class 0.5 current transformers 5A secondary (class 0.2 available on request)
| Brand | MBS |
|---|
