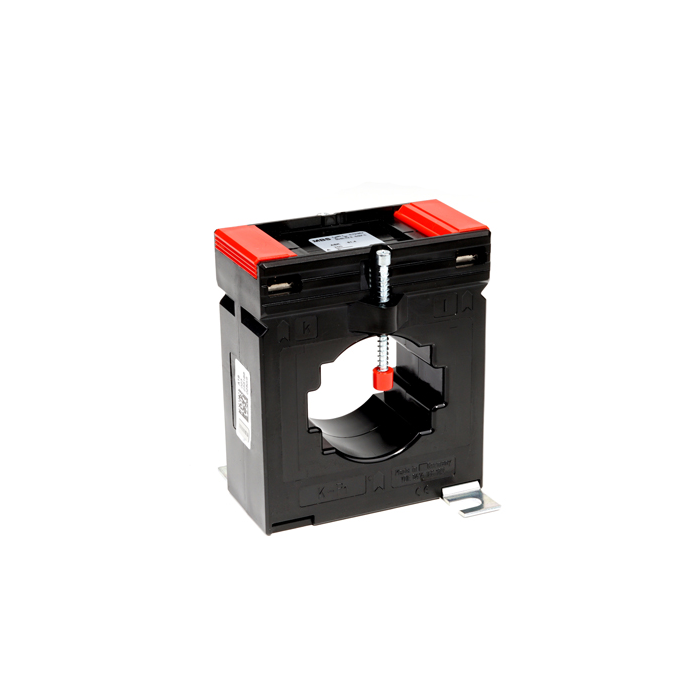

ASK 51.4 transformers for current:

• Class E isolation; Um < 0.72 kV maximum operating voltage; 50 Hz nominal frequency (others upon request)
• Thermal short-time current nominal: Ith = 60 x In
• FS 5 serves as the over-current limiting factor up to 1500 A nominal current.
• MBS AG current transformers completely comply with both VBG 4 and IEC 61869/1+2 as well as DIN 42600 and VDE 0414/1.
• 5A secondary current transformers for class 0.5 (class 0.2 available upon request)
