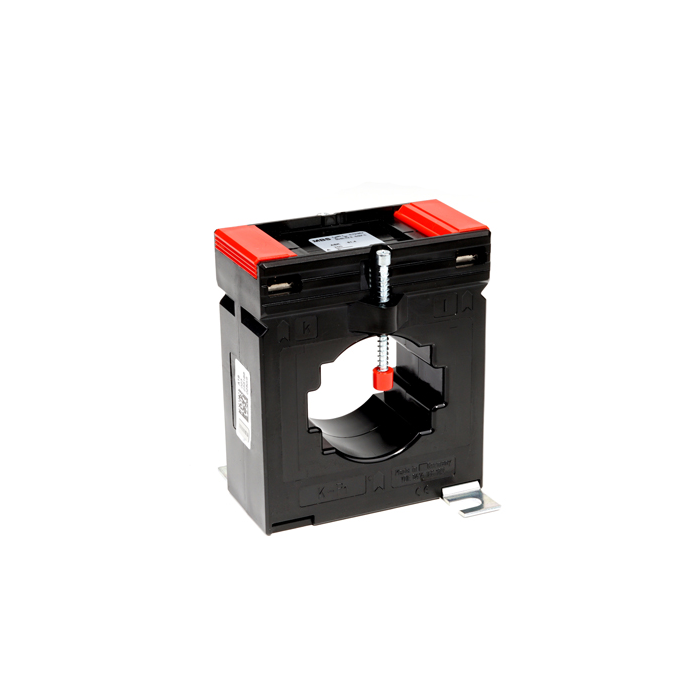

ASK 51.4 1000/5A CURRENT TRANSFORMER CLASS 0.2S

ZAR 2,986.64
Out of stock
SKU
V34-2504J

Current transformers ASK 51.4:

  • Nominal frequency: 50 Hz (others upon request)
  • Maximum operating voltage: Um ≤ 0.72 kV
  • Isolation class: E
  • Ith = 60 x In is the nominal thermal short-time current.
  • Over-current limiting factor: FS 5 for nominal currents up to 1500 A
  • MBS AG current transformers completely abide by: VBG 4 - IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1
  • 5A secondary current converters for class 0.2

Specifications:

  • MODEL: ASK 51.4
  • RATIO: 1000/5A
  • ROUND CONDUCTOR (⌀): 44 mm
  • PRIMARY BAR CONDUCTOR: 50x 12 / 40 x 20
  • DESCRIPTION: Standard current transformer
  • CLASS: 0.2s
  • VA: 15
  • DIMENSIONS (MM): (H) 98.5 x (W) 86 x (D) 58
  • Current transformers
More Information
Brand MBS
