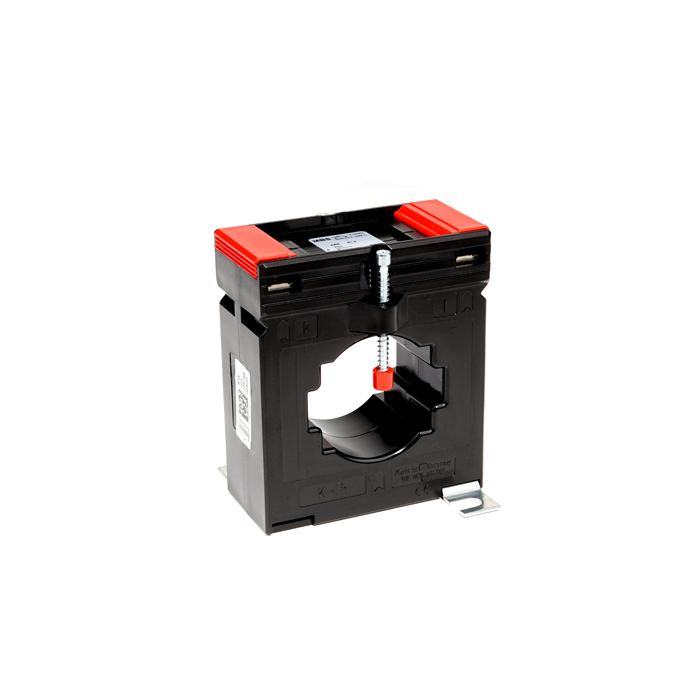

ASK 51.4 600/1A CURRENT TRANSFORMER CLASS 1
General parameters for current transformers:
- Class of isolation: E
- Nominal frequency: 50 Hz (others upon request)
- Maximum operational voltage: Um ≤ 0.72 kV
- Ith = 60 x In is the nominal thermal short-time current.
- Over-current limiting factor: FS 5 for nominal currents up to 1500 A
- MBS AG current transformers completely abide by: VBG 4 - IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1
Specifications:
- Standard current transformers (1A secondary - class 1)
- MODEL: ASK 51.4
- RATIO: 600/1A
- ROUND CONDUCTOR (⌀): 44 mm
- PRIMARY BAR CONDUCTOR: 50 X 10 / 40 X 20 mm
- DESCRIPTION: Standard current transformer
- CLASS: 1
- VA: 15
- DIMENSIONS (MM): (H) 99 x (W) 86 x (D) 58
| Brand | MBS |
|---|
