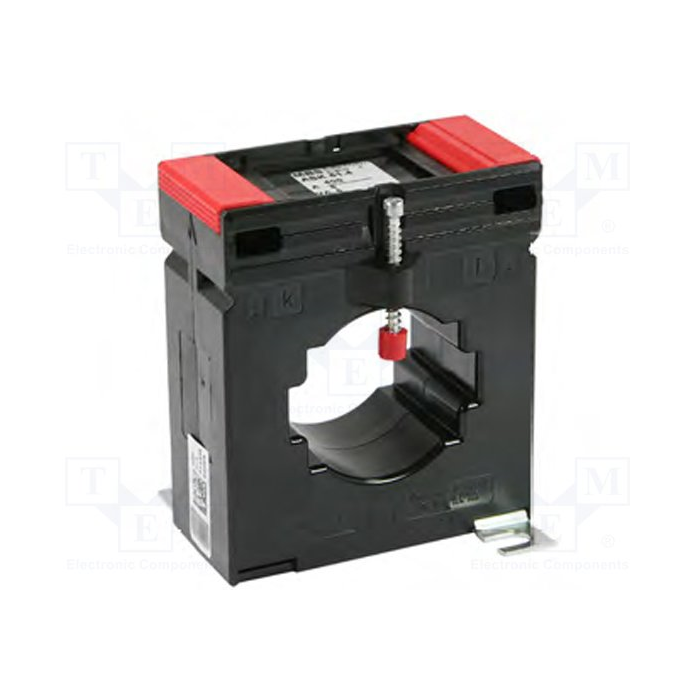

ASK 51.4 600/5A CURRENT TRANSFORMER CLASS 1

ZAR 514.22
Out of stock
SKU
16064

Current transformers ASK 51.4:

  • Nominal frequency: 50Hz (others upon request)
  • Maximum operating voltage: Um ≤ 0.72 kV
  • Isolation class: E
  • Ith = 60 x In is the nominal thermal short-time current.
  • Over-current limiting factor: FS 5 for nominal currents up to 1500 A
  • MBS AG current transformers completely comply with IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1 - VBG 4.
  • Current transformers installed on busbars (5A secondary - class 1)

Specifications:

  • MODEL: ASK 51.4
  • RATIO: 600/5A
  • ROUND CONDUCTOR (⌀): 44 mm
  • PRIMARY BAR CONDUCTOR: 50 X 10 / 40 X 20 mm
  • DESCRIPTION: Standard current transformer
  • CLASS: 1
  • VA: 15
  • DIMENSIONS (MM): (H) 99 x (W) 86 x (D) 58
  • Current transformers
More Information
Brand MBS
