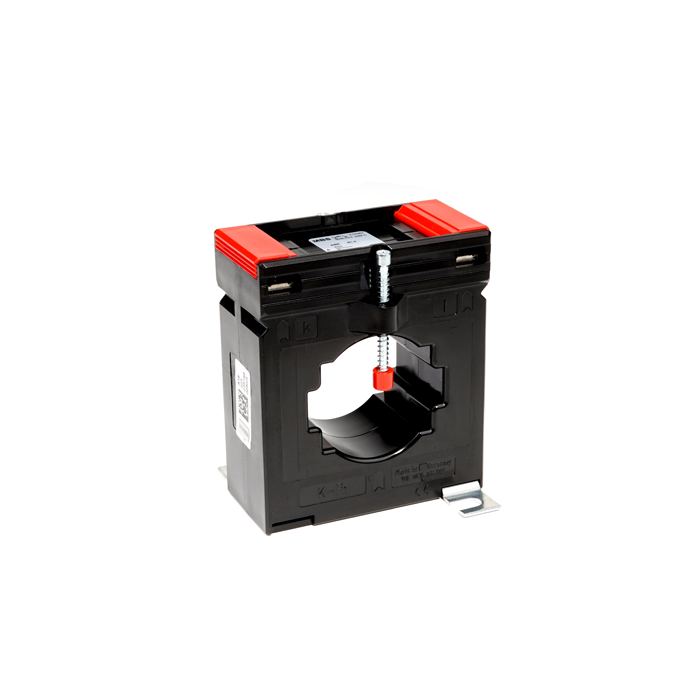

ASK 51.4 750/1A CURRENT TRANSFORMER CLASS 1
General standards for current transformers:
- Category of isolation: E
- Maximum operational voltage: < 0.72 kV
- Nominal frequency: 50 Hz (other frequencies upon request).
- For thermal short-time current, the nominal value is Ith = 60 x In.
- Up to 1500 A nominal current, the over-current limiting factor (FS 5)
- All MBS AG current transformers adhere to: DIN 42600, IEC 61869/1+2, VBG 4, and DIN VDE 0414/1
Specifications:
- Standard current transformers (1A secondary - class 1)
- MODEL: ASK 51.4
- RATIO: 750/1A
- ROUND CONDUCTOR (⌀): 44 mm
- PRIMARY BAR CONDUCTOR: 50 X 10 / 40 X 20 mm
- DESCRIPTION: Standard current transformer
- CLASS: 1
- VA: 15
- DIMENSIONS (MM): (H) 99 x (W) 86 x (D) 58
| Brand | MBS |
|---|
