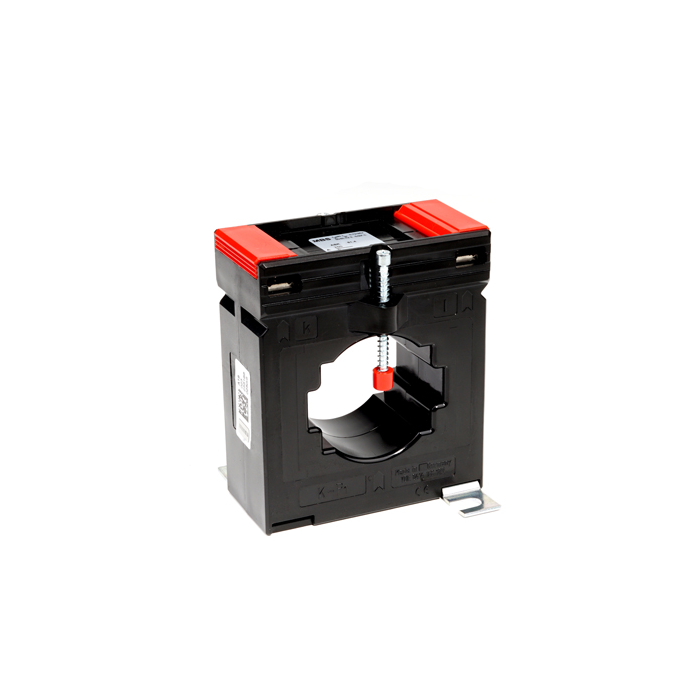

Current transformers ASK 51.4:

• Class of isolation: E
• Um < 0.72 kV is the maximum operational voltage.
• 50 Hz is the nominal frequency (others upon request).
• Ith = 60 x is the nominal thermal short-time current.
• MBS AG current transformers completely comply with the following in terms of the over-current limiting factor (FS 5) up to 1500 A nominal current.
• VBG 4 - IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1
• 5A secondary class 0.5 current transformers (class 0.2 available upon request)
