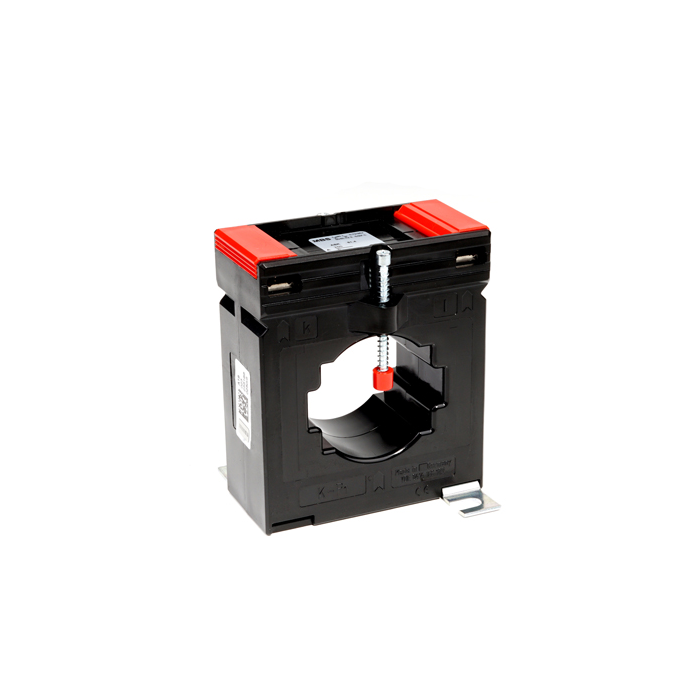

ASK 51.4 transformers for current:

• Class E isolation
• Um < 0.72 kV maximum operating voltage
• 50 Hz nominal frequency (others upon request)
• Thermal short-time current nominal: Ith = 60 x In
• FS 5 serves as the over-current limiting factor up to 1500 A nominal current.
• MBS AG current transformers fully abide with: IEC 61869/1+2 - VBG 4 - DIN 42600 - DIN VDE 0414/1
• 5A secondary class 0.2 current transformers
