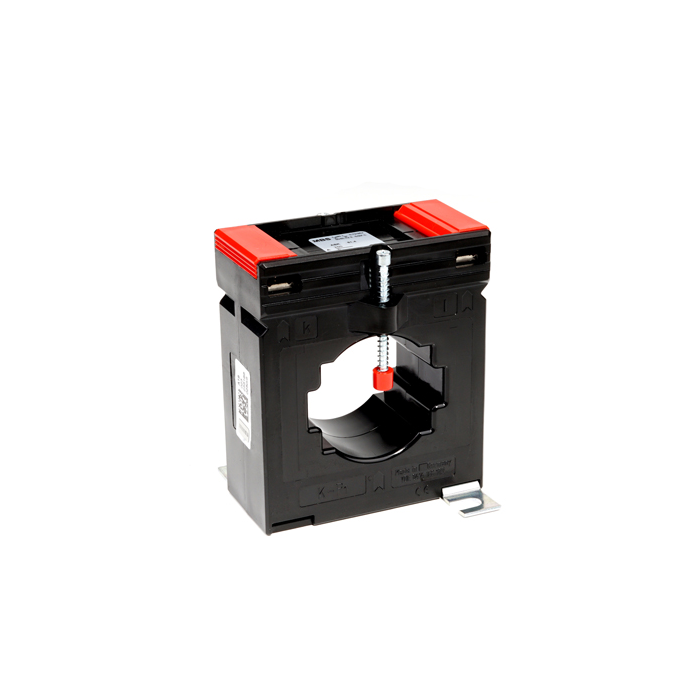

Current transformers ASK 51.4:

• Nominal frequency: 50Hz (others upon request)
• Maximum operating voltage: Um ≤ 0.72 kV
• Isolation class: E
• Ith = 60 x In is the nominal thermal short-time current.
• Over-current limiting factor: FS 5 for nominal currents up to 1500 A
• MBS AG current transformers completely comply with IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1 - VBG 4.
• 5A secondary class 0.5 current transformers (class 0.2 available upon request)
