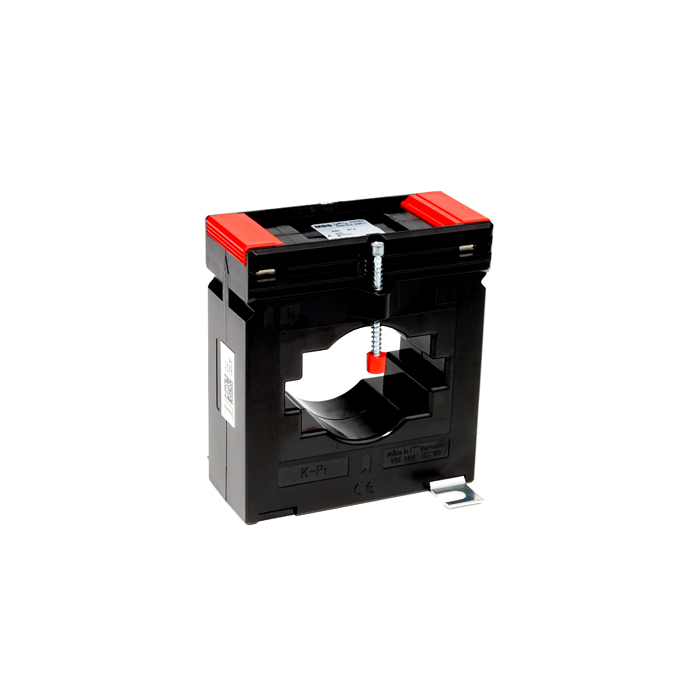

ASK 61.4 1000/5A 15VA cl 0.5
General specs for current transformers:
- Type of isolation: E
- The maximum operational voltage is < 0.72 kV, and the nominal frequency is 50Hz (alternative frequencies can be requested).
- Thermal short-time current nominal: Ith = 60 x In
- FS 5 serves as the over-current limiting factor up to 1500 A nominal current.
- MBS AG current transformers fully abide with: IEC 61869/1+2 - VBG 4 - DIN 42600 - DIN VDE 0414/1
Specifications:
- Class 0.5 current transformers 5A secondary (class 0.2 available on request)
- ASK 61.4 current transformers
- MODEL: ASK 61.4
- RATIO: 1000/5A
- ROUND CONDUCTOR (⌀): 44 mm
- PRIMARY BAR CONDUCTOR: 60 X 10 / 50 X 20 mm
- DESCRIPTION: Standard current transformer
- CLASS: 0.5
- VA: 15
- DIMENSIONS (MM): (H) 106 x (W) 96 x (D) 58
| Brand | MBS |
|---|
