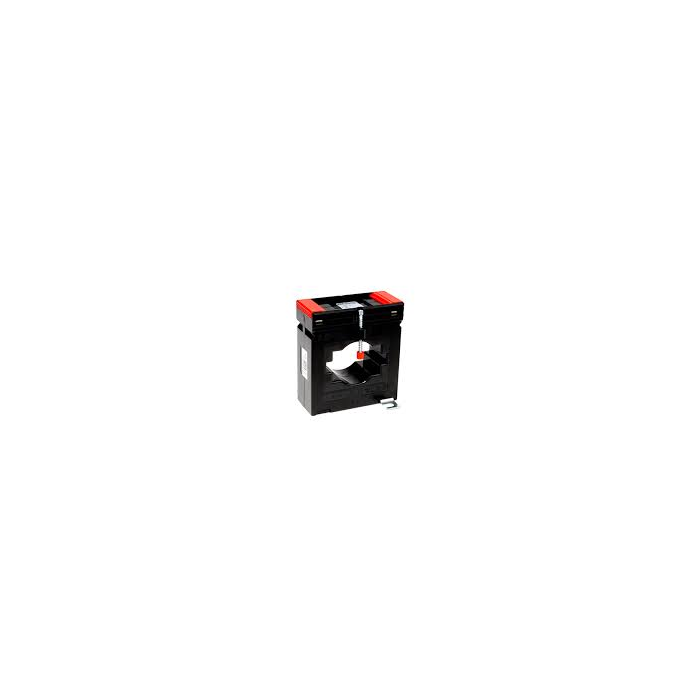

Current transformers ASK 61.4:

• Nominal frequency: 50 Hz (others upon request)
• Maximum operating voltage: Um ≤ 0.72 kV
• Isolation class: E
• Ith = 60 x In is the nominal thermal short-time current.
• Over-current limiting factor: FS 5 for nominal currents up to 1500 A
• MBS AG current transformers completely abide by: VBG 4 - IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1
• 5A secondary current converters for class 0.2
