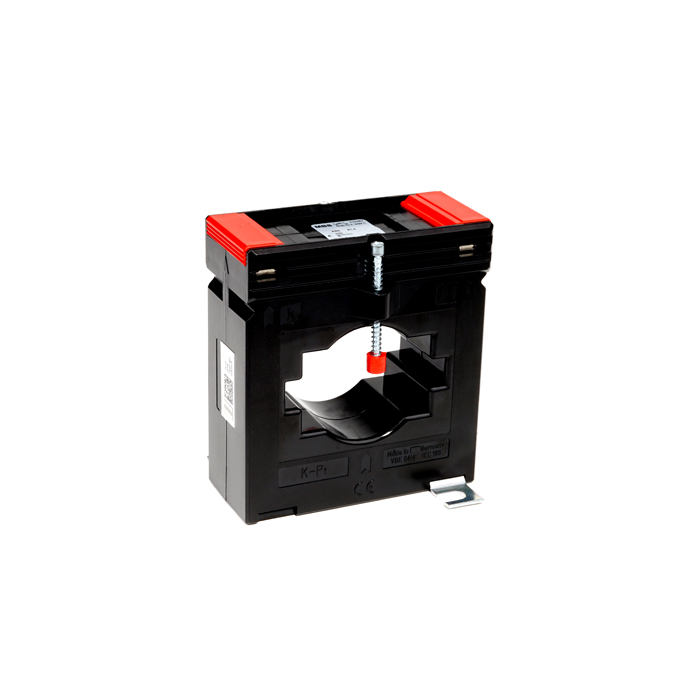

ASK 61.4 600/5A CT cl 1
General standards for current transformers:
- Category of isolation: E
- Maximum operational voltage: < 0.72 kV
- nominal frequency: 50 Hz (other frequencies upon request).
- For thermal short-time current, the nominal value is Ith = 60 x In.
- Up to 1500 A nominal current, the over-current limiting factor (FS 5)
- All MBS AG current transformers adhere to: DIN 42600, IEC 61869/1+2, VBG 4, and DIN VDE 0414/1
Specifications:
- Busbar mounted current transformers(5A secondary - class 1)
- ASK 61.4 current transformers
- MODEL: ASK 61.4
- RATIO: 600/5A
- ROUND CONDUCTOR (⌀): 44 mm
- PRIMARY BAR CONDUCTOR: 60 X 10 / 50 X 20 mm
- DESCRIPTION: Standard current transformer
- CLASS: 1
- VA: 15
- DIMENSIONS (MM): (H) 106 x (W) 96 x (D) 58
Brand | MBS |
---|
