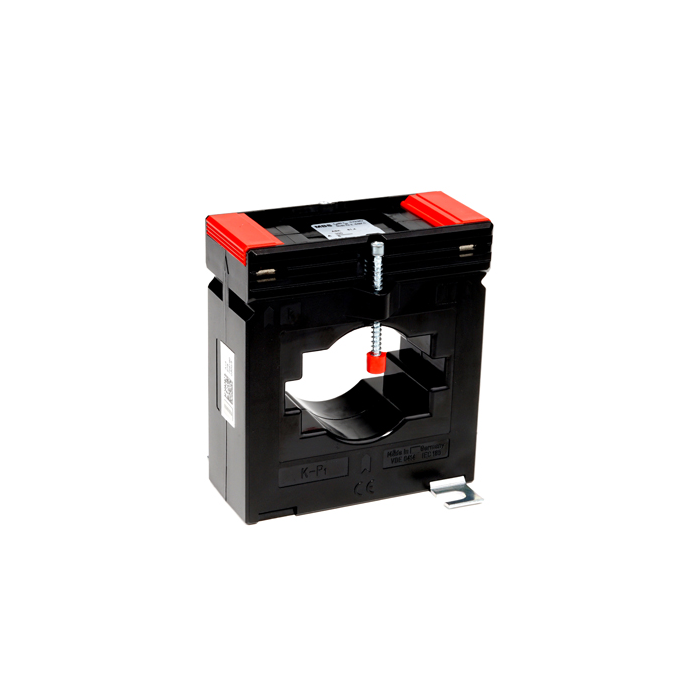

ASK 61.4 750/5A CT cl 1
Standards for general current transformers:
- E is the isolation class.
- Nominal frequency: 50Hz (others per request)
- Maximum operating voltage: Um ≤ 0.72 kV
- Thermal short-time current nominal: Ith = 60 x In
- FS 5 is the over-current limiting factor up to 1500 A nominal current.
- MBS AG current transformers completely abide by: IEC 61869/1+2 - DIN 42600 - VBG 4 - DIN VDE 0414/1
Specifications:
- Busbar mounted current transformers(5A secondary - class 1)
- ASK 61.4 current transformers
- MODEL: ASK 61.4
- RATIO: 750/5A
- ROUND CONDUCTOR (⌀): 44 mm
- PRIMARY BAR CONDUCTOR: 60 X 10 / 50 X 20 mm
- DESCRIPTION: Standard current transformer
- CLASS: 1
- VA: 15
- DIMENSIONS (MM): (H) 106 x (W) 96 x (D) 58
| Brand | MBS |
|---|
