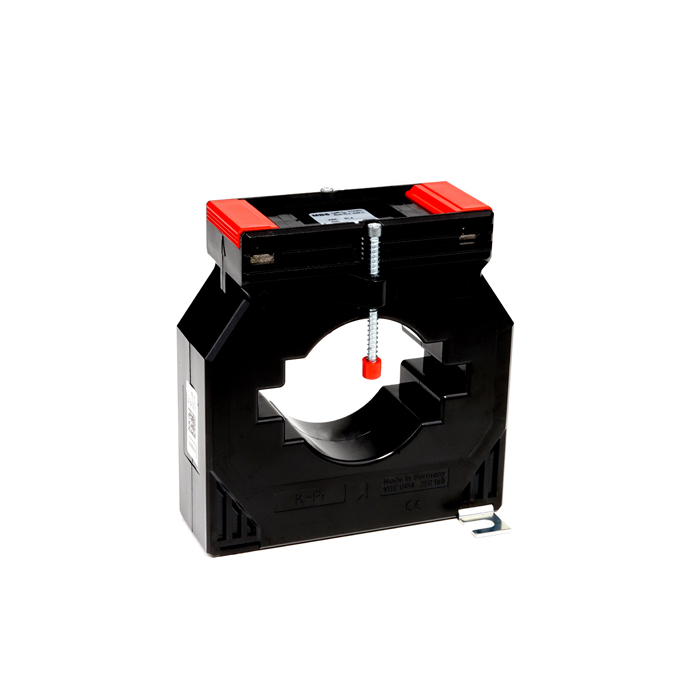

ASK 81.4 1600/5A CT cl 0.5
General specifications:
- Isolation class: E.
- Maximum operating voltage: Um 0.72 kV.
- Nominal frequency: 50Hz (others on request).
- Nominal thermal short-time current: Ith = 60 x In.
- Over-current limiting factor: FS 5 up to 1500 A nominal current.
- MBS AG current transformers conform fully to: DIN VDE 0414/1 - DIN 42600 - IEC 61869/1+2 - VBG 4
Specifications:
- Class 0.5 current transformers 5A secondary (class 0.2 available on request),
- ASK 81.4 current transformers,
- MODEL ASK 81.4,
- RATIO 1600/5A,
- ROUND CONDUCTOR (⌀) 55 mm,
- PRIMARY BAR CONDUCTOR 80 X 10 / 60 X 30 mm,
- DESCRIPTION Standard current transformer,
- CLASS 0.5,
- VA 15,
- DIMENSIONS (MM) (H) 124 x (W) 120 x (D) 58
| Brand | MBS |
|---|
