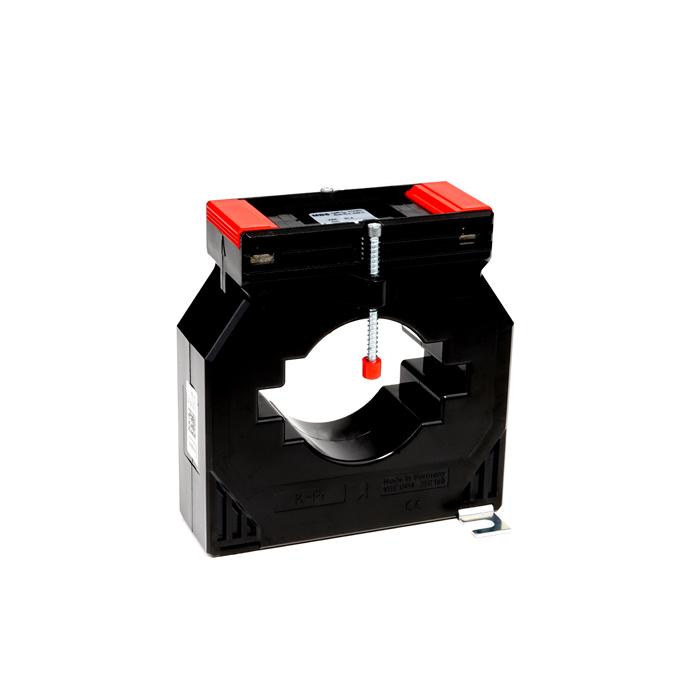

ASK 81.4 1600/5A CT cl 1
General parameters:
- Category of isolation: E.
- The highest voltage that can be used is 0.72 kV.
- 50Hz as the nominal frequency (others upon request).
- For thermal short-time current, the nominal value is Ith = 60 x In.
- Up to 1500 A nominal current, the over-current limiting factor (FS 5) is in place.
- The MBS AG current transformers completely comply with the following standards: VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
Specifications:
- Standard current transformers (5A secondary - class 1),
- ASK 81.4 current transformers,
- MODEL ASK 81.4,
- RATIO 1600/5A,
- ROUND CONDUCTOR (⌀) 55 mm,
- PRIMARY BAR CONDUCTOR 80 X 10 / 60 X 30 mm,
- DESCRIPTION Standard current transformer,
- CLASS 1,
- VA 30,
- DIMENSIONS (MM) (H) 124 x (W) 120 x (D) 58
| Brand | MBS |
|---|
