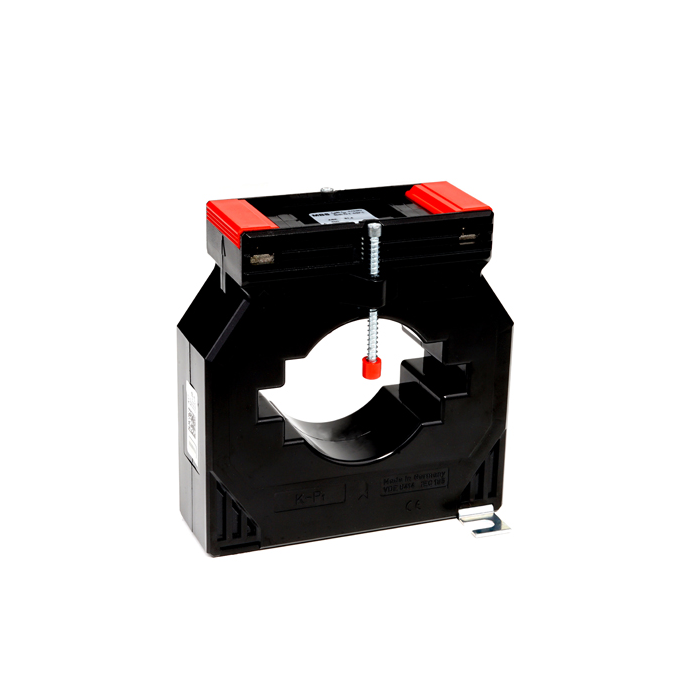

ASK 81.4 800/1A CT cl 1
Overall characteristics:
- E is the isolation class.
- Operating voltage maximum: approximately 0.72 kV.
- 50 Hz is the nominal frequency: alternative frequencies available upon request.
- Ith = 60 x In represents the nominal thermal short-time current.
- FS 5 is the over-current limiting factor up to 1500 A nominal current.
- MBS AG current transformers completely comply with IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Specifications:
- Standard current transformers (1A secondary - class 1),
- ASK 81.4 current transformers,
- MODEL ASK 81.4,
- RATIO 800/1A,
- ROUND CONDUCTOR (⌀) 55 mm,
- PRIMARY BAR CONDUCTOR 80 X 10 / 60 X 30 mm,
- DESCRIPTION Standard current transformer,
- CLASS 1,
- VA 15,
- DIMENSIONS (MM) (H) 124 x (W) 120 x (D) 40
| Brand | MBS |
|---|
