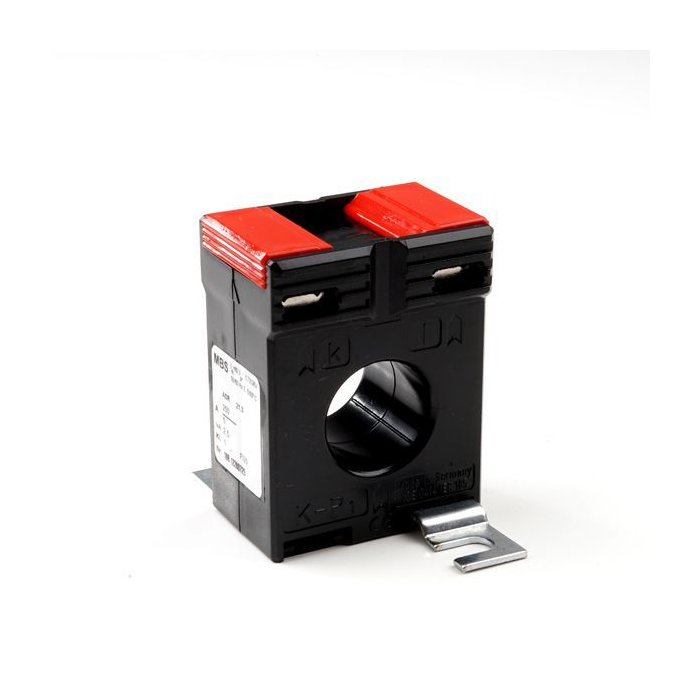

ASR 20.3 100/5A RING CT cl 1
Transformers of current overall characteristics:
- E is the isolation class.
- Maximum working voltage: 0.72 kV or less.
- 50 Hz is the nominal frequency: alternative frequencies available upon request.
- Ith = 60 x In represents the nominal thermal short-time current.
- FS 5 is the over-current limiting factor up to 1500 A nominal current.
- MBS AG current transformers completely comply with IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Specifications:
- Tube/ring type current transformers (5A secondary - class 1),
- ASR 20.3 tube current transformers,
- MODEL ASR 20.3,
- RATIO 100/5A,
- ROUND CONDUCTOR (⌀) 21 mm,
- DESCRIPTION Tube current transformer,
- CLASS 1,
- VA 2.5,
- DIMENSIONS (MM) (H) 65 x (W) 45 x (D) 30
| Brand | MBS |
|---|
