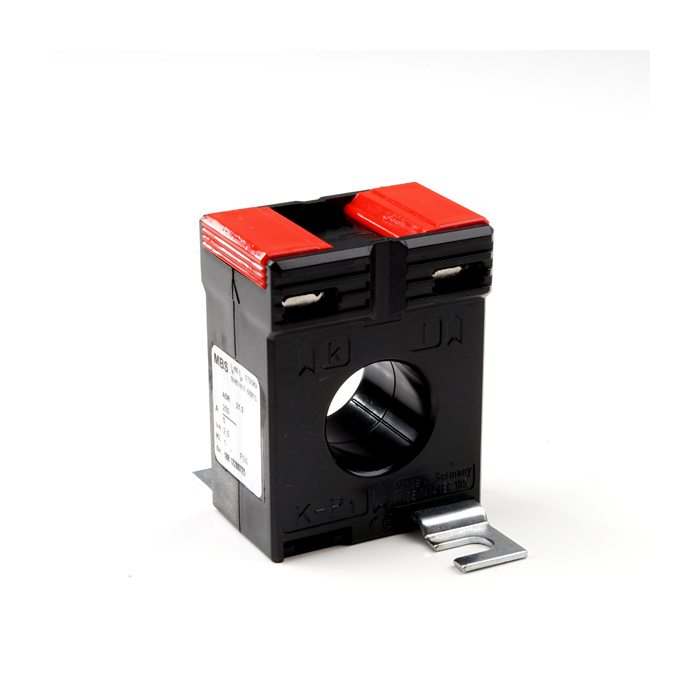

ASR 20.3 150/5A RING CT cl 1
Transformers for current General details:
- Class of isolation: E.
- Operating voltage maximum: Um < 0.72 kV.
- 50 Hz is the nominal frequency (others upon request).
- Ith = 60 x In is the nominal thermal short-time current.
- FS 5 is the over-current limiting factor up to a nominal current of 1500 A.
- MBS AG current transformers completely comply with VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
Specifications:
- Tube/ring type current transformers (5A secondary - class 1),
- ASR 20.3 tube current transformers,
- MODEL ASR 20.3,
- RATIO 150/5A,
- ROUND CONDUCTOR (⌀) 21 mm,
- DESCRIPTION Tube current transformer,
- CLASS 1,
- VA 3.75,
- DIMENSIONS (MM) (H) 65 x (W) 45 x (D) 30
| Brand | MBS |
|---|
