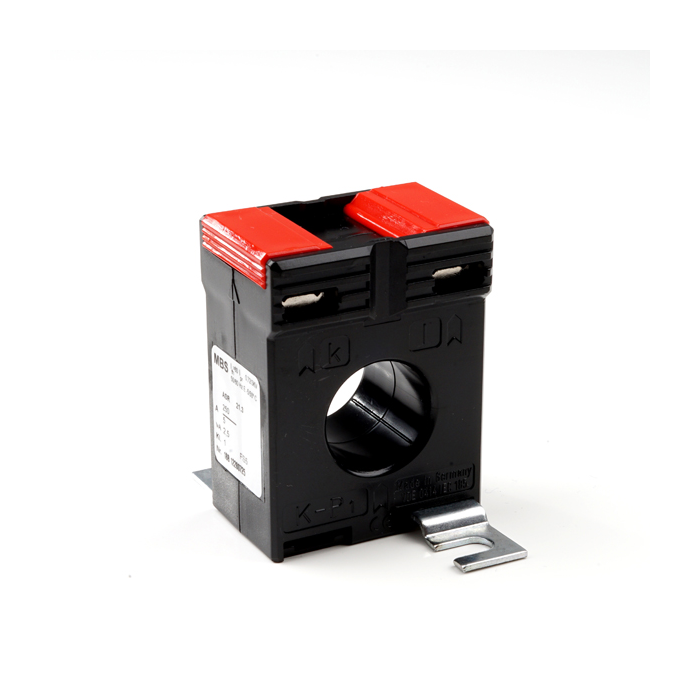

ASR 20.3 200/5A RING CT cl 1
Transformers of current general parameters:
- Category of isolation: E.
- Up to a maximum of 0.72 kV, the working voltage.
- 50Hz as the nominal frequency (others upon request).
- For thermal short-time current, the nominal value is Ith = 60 x In.
- Up to 1500 A nominal current, the over-current limiting factor (FS 5) is in place.
- The MBS AG current transformers completely comply with the following standards: VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
Specifications:
- Tube/ring type current transformers (5A secondary - class 1),
- ASR 20.3 tube current transformers,
- MODEL ASR 20.3,
- RATIO 200/5A,
- ROUND CONDUCTOR (⌀) 21 mm,
- DESCRIPTION Tube current transformer,
- CLASS 1,
- VA 3.75,
- DIMENSIONS (MM) (H) 65 x (W) 45 x (D) 30
| Brand | MBS |
|---|
