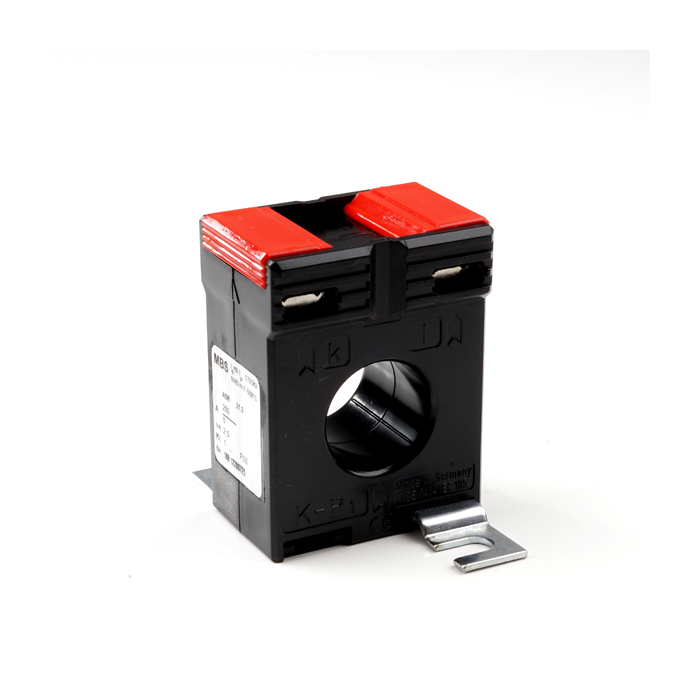

ASR 20.3 250/5A RING CT cl 1
Transformers for current Broad parameters:
- E is the isolation class.
- Up to 0.72 kV is the maximum operating voltage.
- Frequency nominal: 50 Hz (others upon request).
- Thermal short-time current nominal: Ith = 60 x In.
- FS 5, up to 1500 A nominal current, is the over-current limiting factor.
- MBS AG current transformers completely adhere to IEC 61869/1+2, DIN 42600, VBG 4, and DIN VDE 0414/1.
Specifications:
- Tube/ring type current transformers (5A secondary - class 1),
- ASR 20.3 tube current transformers,
- MODEL ASR 20.3,
- RATIO 250/5A,
- ROUND CONDUCTOR (⌀) 21 mm,
- DESCRIPTION Tube current transformer,
- CLASS 1,
- VA 5,
- DIMENSIONS (MM) (H) 65 x (W) 45 x (D) 30
| Brand | MBS |
|---|
