  • ASR 20.3 75/5A RING CT cl 1

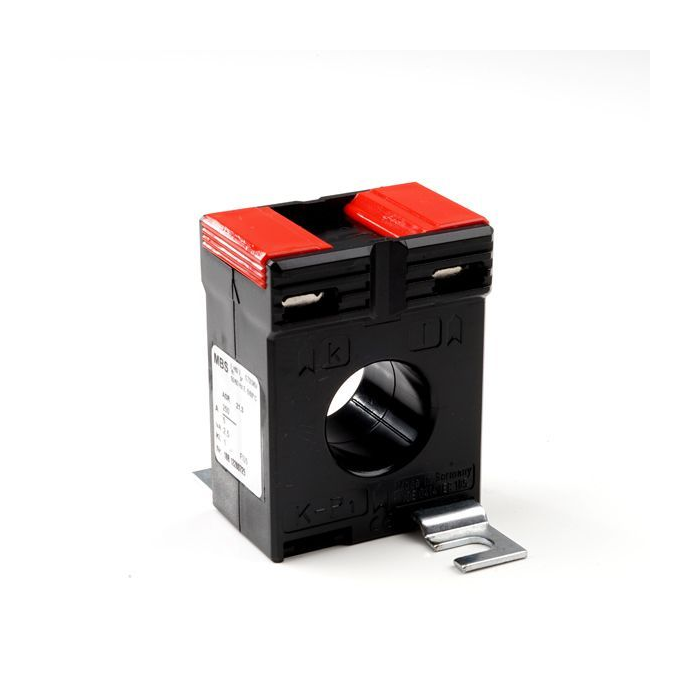

main product photo

ASR 20.3 75/5A RING CT cl 1

Be the first to review this product
ZAR 475.53
Out of stock
SKU
26031

Transformers of current general parameters:

  • Category of isolation: E.
  • Up to a maximum of 0.72 kV, the working voltage.
  • 50Hz as the nominal frequency (others upon request).
  • For thermal short-time current, the nominal value is Ith = 60 x In.
  • Up to 1500 A nominal current, the over-current limiting factor (FS 5) is in place.
  • The MBS AG current transformers completely comply with the following standards: VBG 4, IEC 61869/1+2, DIN 42600, and DIN VDE 0414/1.
      • Add to Wish List Add to Compare

      Specifications:

      • Tube/ring type current transformers (5A secondary - class 1),
      • ASR 20.3 tube current transformers,
      • MODEL ASR 20.3,
      • RATIO 75/5A,
      • ROUND CONDUCTOR (⌀) 21 mm,
      • DESCRIPTION Tube current transformer,
      • CLASS 1,
      • VA 1.5,
      • DIMENSIONS (MM) (H) 65 x (W) 45 x (D) 30
      More Information
      Brand MBS
