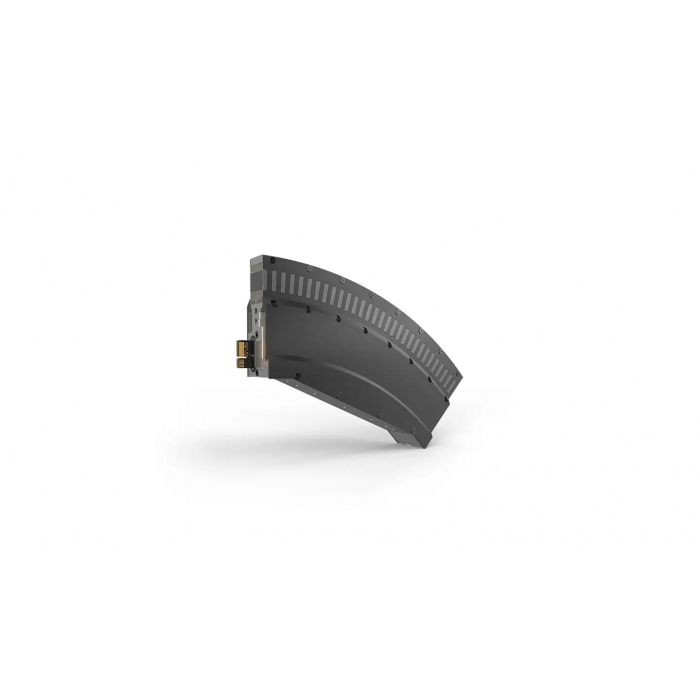

AT2040-0250 motor module, 45° (positive curve, convex, radius constant), 48 V DC/24 V DC, 258.9 mm x 39.1 mm x 114.4 mm (L x W x H), 1.9 kg, UL-certified
Motor type: long stator linear motor segment
Design form: curved segment, 45° (positive curve, Ø 637 mm)
Motor length: 250 mm
Connection method: connectors between the motor modules (daisy chaining)
Length per feed: max. 3 m (voltage supply, EtherCAT)
Cooling: convection
Ambient temperature (operation): 0…+40 °C
The motor modules with the product designation AT2040 are elements for the construction of curved XTS track sections.
| SKU | AT2040-0250 |
|---|
