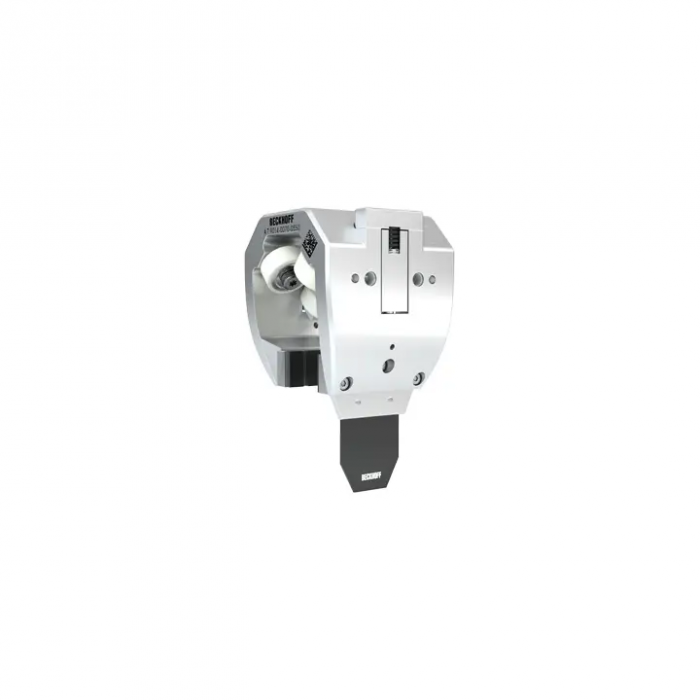

AT9014-0070-1550 mover, spring-loaded, length 70 mm, 651 g, mounted with magnetic plate set AT9001-0550 (mover standard)

Mover length: 70 mm Magnet pitch: 72 mm Main body material: aluminum Rollers material: plastic Weight: 651 g Peak force: AT9001-x550 (5-pin): 100 N (specifications refer to straight sections) Continuous force AT9001-x550 (5-pin): 30 N (specifications refers to straight sections) Payload: typ. 600 g (up to 1000 g possible after consultation) Mileage: 30,000 km with 600 g at Ø 1.5 m/s achieved in life cycle test; the general conditions of the application have an effect on the mileage; further details about test conditions on request Electronical detection: standard and mover 1 Possible curve segments: straight (AT9000, AT9100), 180° (clothoid, AT9050-0500-0170), 45° (AT9040-0750-0070, AT9040-1250-0070)
