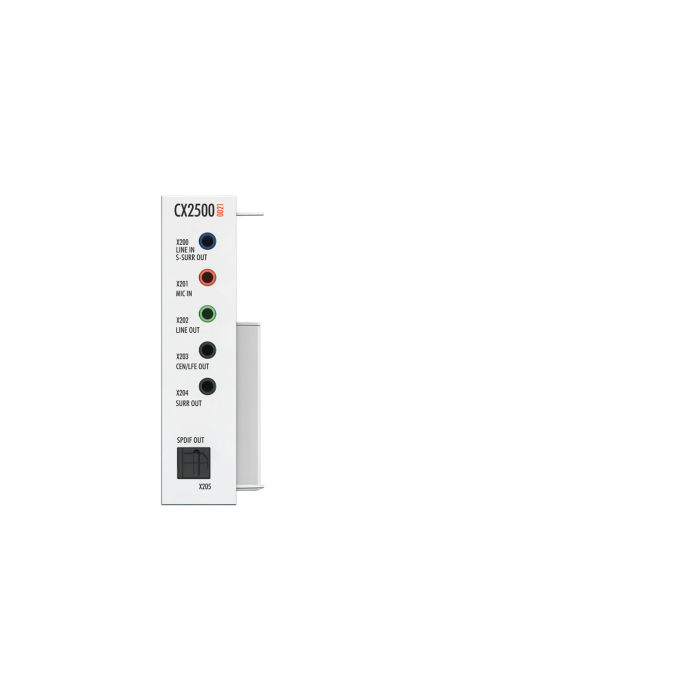

Audio interface CX2500-0021
The system modules for the CX20x3 family are connected to the CPU on the left-hand side via a multi-pin connector. Internally they are connected via PCI Express. One module can be connected. The CX2500-0021 audio module has jack plugs (5 x 3.5 mm) and an optical TOSLINK socket for digital signals (SPDIF). Up to 7.1 multi-channel audio can be used.
Interfaces: Line IN, Line OUT, Mic IN, 7.1, SPDIF
Type of connection: 3.5 mm socket for jack plug, TOSLINK socket
Power supply: via system bus (through CX2100-0xxx power supply modules)
Dimensions (W x H x D): 24 mm x 99 mm x 54.5 mm
Weight: approx. 180 g
Relative humidity: 95 %, no condensation
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protection rating: IP20
| SKU | CX2500-0021 |
|---|
