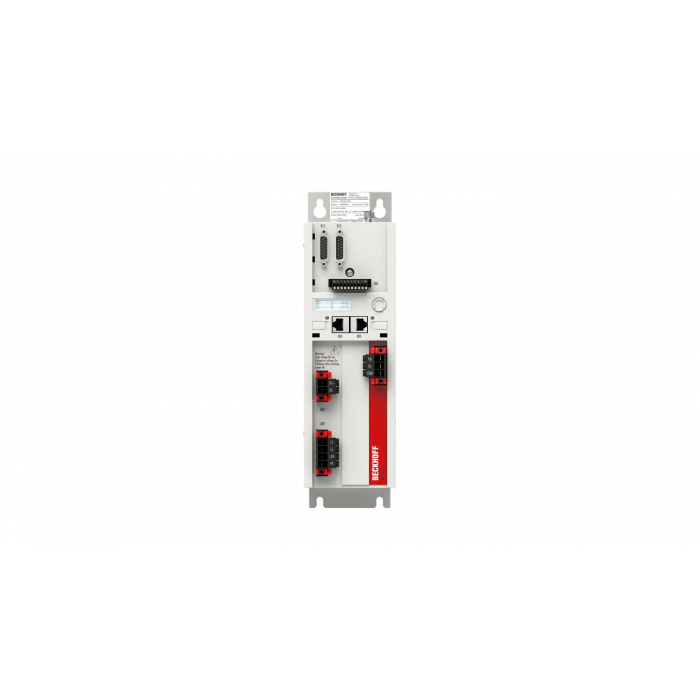

AX5101-0000-0200 Digital Compact Servo Drive, 1-axis module, 100…480 V AC, rated output current 1.5 A, EtherCAT interface, OCT, hardware version 2.0, firmware version 2.06 (1)
Channels: 1
Rated supply voltage: 3 x 100…480 V AC ±10 %
DC link voltage: max. 875 V DC
Rated output current (channel): 1.5 A
Peak output current (channel): 4.5 A
Feedback: SinCos 1 Vpp , resolver , EnDat 2.1 , Hiperface , BiSS B , OCT
System bus: EtherCAT
Drive profile: SERCOS™ profile for servo drives according to IEC 61800-7-204 (SoE)
Ambient temperature (operation): 0…+50 °C (see documentation)
Approvals/markings: CE, cULus, EAC
The AX5000 drives are available in different current intensities from 1.5 A to 170 A.
| SKU | AX5101-0000-0200 |
|---|
