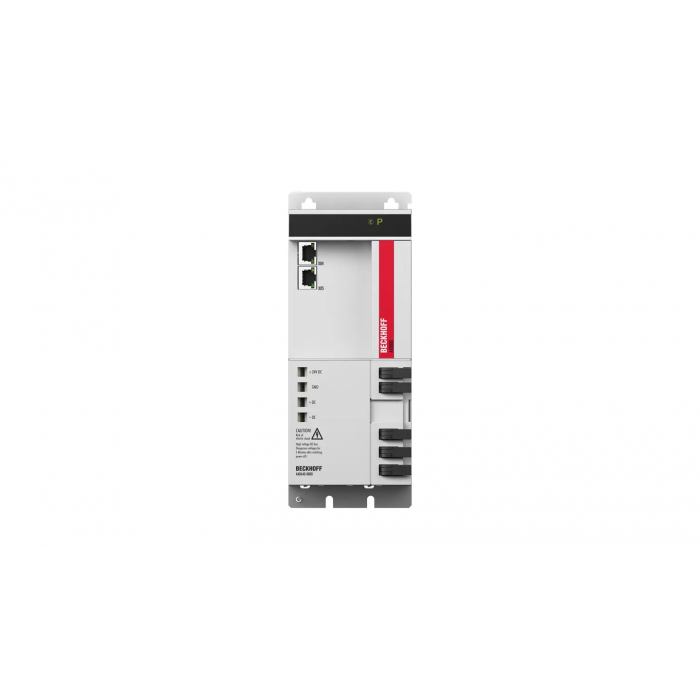

AX8640-0000-0000 power supply module 90 mm
Rated supply voltage: 3 x 200…480 V AC
DC link voltage: max. 848 V DC
DC link output current: 3~: 40.0 A DC
System bus: EtherCAT
Drive profile: CiA402 according to IEC 61800-7-201 (CoE)
Ambient temperature (operation): 0…+40 °C, up to +55 °C with power reduction (see documentation)
Approvals/markings: CE, cULus, EAC
A power supply module generates the DC link voltage (DC) for the power supply of the axis modules and the option modules from the mains voltage. It already contains a mains filter, for which the drive is tested and certified in accordance with EN 61800-3 for Category C3 use.
| SKU | AX8640-0000-0000 |
|---|
